Mean Well HRPG-1000-12 SMPSU 14V 80A 960W Power Supply

Mean Well
Order Code:

05-0888

Brand: Mean Well MPN: HRPG-1000-12 EAN-13: 4021087047531
Qty Unit Price (Ex VAT)
1+ £228.78
5+ £221.92
10+ £215.06
25+ £208.19
50+ £201.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

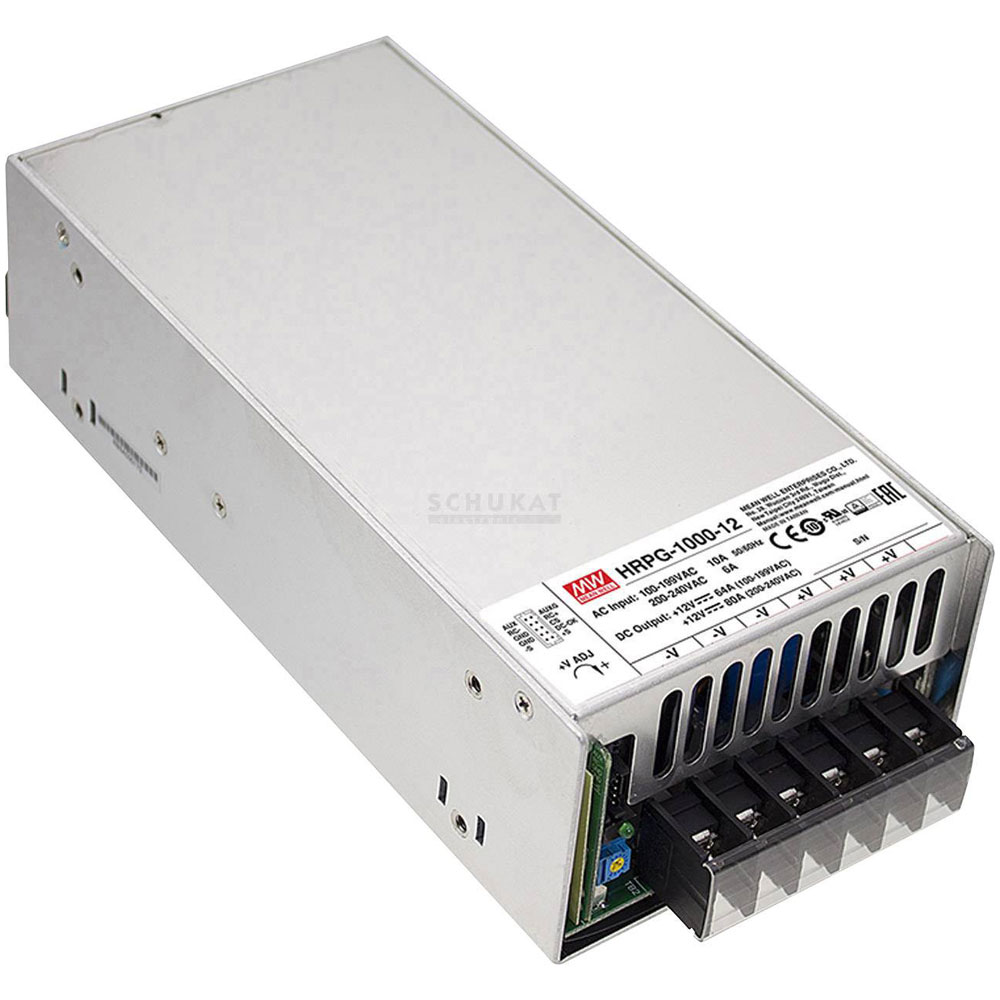

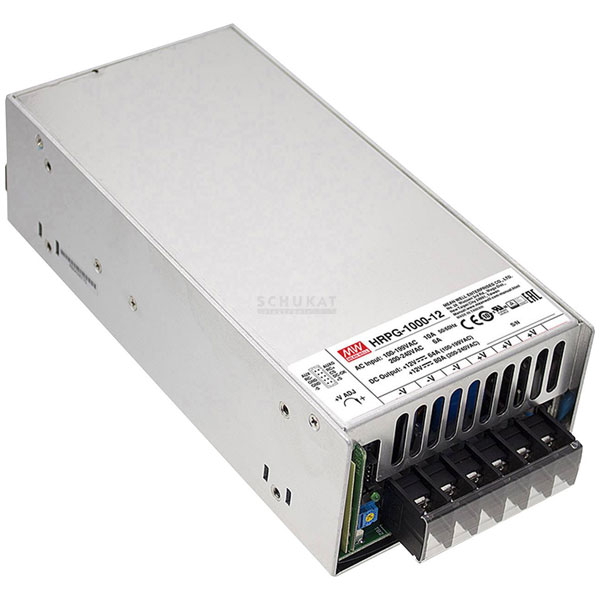

The Mean Well HRPG-1000-12 is a switch mode power supply unit (SMPSU) that provides 14 V DC at 80 A, delivering a total power output of 960 W. It features screw terminals for easy installation and is designed for use in printed circuit boards. Typical applications include industrial automation, telecommunications equipment, and other electronic systems requiring reliable and efficient power conversion.
Connection Screw terminal
Dim (L x W x H) 218 x 105 x 63.5 mm
Height 63.5mm
Input voltage (max.) 264V AC
Length 218mm
Max. output current 80A
Max. temperature +70°C
Min. input voltage 90V AC
Min. temperature -40°C
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
MTBF 228600h
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 80A
Output current (min.) 0A
Output voltage (max.) 14V DC
Output voltage (min.) 11V DC
PFC Yes
Power 960W
PSU features Adjustable voltage output
Type SMPSU
Width 105mm
