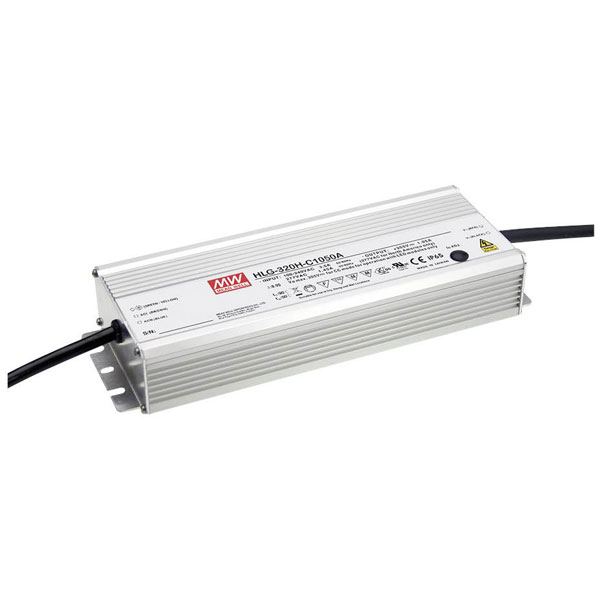

Mean Well HLG-320H-C1050A LED driver 320W adjustable outdoor use

Mean Well
Standard range
Order Code:

05-0836

Brand: Mean Well MPN: HLG-320H-C1050A
Qty Unit Price (Ex VAT)
1+ £98.20
5+ £89.18
10+ £86.32
25+ £83.46
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Mean Well HLG-320H-C1050A LED driver is a constant current power supply providing 320.25 W and a current range of 525 - 1050 mA, with a voltage range of 152 - 305 V DC. It is suitable for flammable surfaces, approved for use on furniture, and includes features like a PFC circuit, adjustability, surge protection, and overvoltage protection. This outdoor-rated LED driver is typically used for powering LED strips
Type LED driver
Connection Open end cable
Dim (L x W x H) 252 x 90 x 43.8 mm
Factory colour Aluminium
Height 43.8mm
Input voltage (max.) 305V AC
IP rating IP65
Length 252mm
Max. output current 1050mA
Max. power 320.25W
Max. temperature 85°C
Min. input voltage 90V AC
Min. temperature -40°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 1.05A
Output current (min.) 525mA
Output voltage (max.) 305V DC
Output voltage (min.) 152V DC
Power range 320.25 W (max)
Protection class I
Test mark MM · UL · ENEC · CCC · CB · CE
Weight 1880g
Width 90mm
