Mean Well HLG-240H-24AB LED driver 240W dimmable surge protection

Mean Well
Order Code:

05-0808

Brand: Mean Well MPN: HLG-240H-24AB EAN-13: 4021087049481
Qty Unit Price (Ex VAT)
1+ £74.46
5+ £72.21
10+ £70.00
25+ £67.77
50+ £65.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

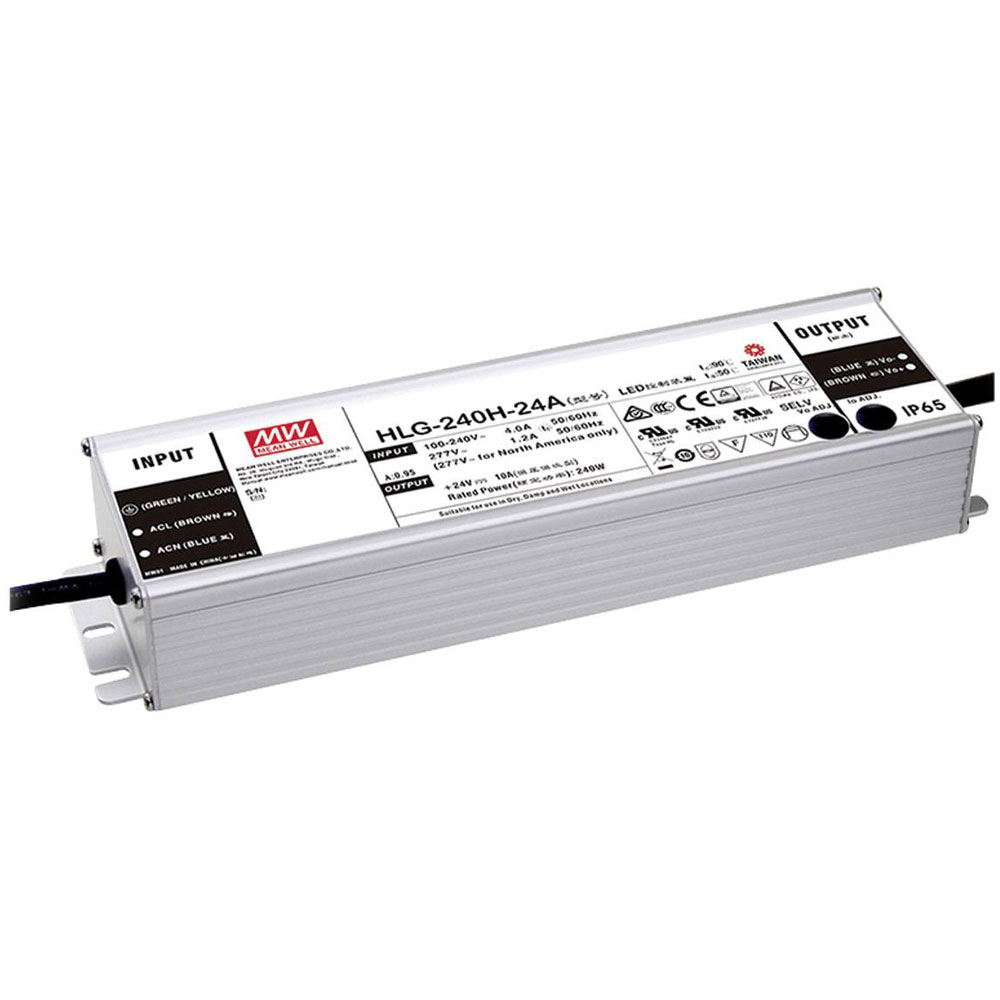

The Mean Well HLG-240H-24AB is an LED driver designed for outdoor applications, featuring surge protection and a 3-in-1 dimmer. It provides a constant voltage of 240W, with adjustable output between 22.4 - 25.6V DC and a current rating of 5 - 10A. This driver is commonly used in LED strips and other LED lighting systems, benefiting from its PFC circuit and overvoltage protection.
Type LED driver
Connection Open end cable
Dim (L x W x H) 244.2 x 68 x 38.8 mm
Factory colour Metal
Height 38.8mm
IP Rating IP65
Length 244.2mm
Max. output current 10A
Max. power 240W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 10A
Output current (min.) 5A
Output voltage (max.) 25.6V DC
Output voltage (min.) 22.4V DC
Power range 240 W (max)
Protection Class I
Test mark SELV, UL, TÜV, CB, CE
Width 68mm
