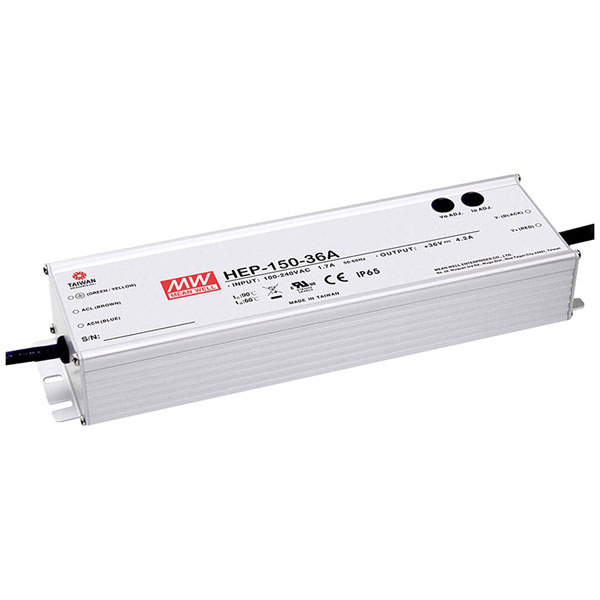

Mean Well HEP-150-36A Industrial PSU 36V DC 4.2A 150W AC/DC Converters

Mean Well's HEP-150-36A is an industrial power supply unit designed to provide reliable DC power output for demanding engineering applications. The unit delivers 36 volts of direct current at a current rating of 4.2 amperes, achieving a total power output of 150 watts. This power supply is encapsulated in a rugged enclosure, making it suitable for harsh industrial environments where durability and efficiency are paramount. Engineers frequently deploy the HEP-150-36A in projects requiring a stable power source for communication equipment, industrial automation systems, and outdoor electronic signage. Its robust design and high efficiency make it an ideal choice for applications that necessitate long-term reliability in challenging operational conditions.

Type	Industrial PSU
Output Voltage	36V DC
Power Rating	150W
Output Current	4.2A
Input Voltage	100 - 240V AC
Connection	Open end cable
Dimensions	(L x W x H) 228 x 68 x 38.8 mm
Height	38.8mm
Input voltage (max.)	305V AC
Length	228mm
Max. output current	4.2A
Min. input voltage	90V AC
MTBF	164100h
No. of outputs	1
Operating temperature (max.)	70°C
Operating temperature (min.)	-55°C
Output voltage (max.)	36V DC
PFC	Yes
Power	150W
PSU features	open cable ends
Weight	1150g
Width	68mm
