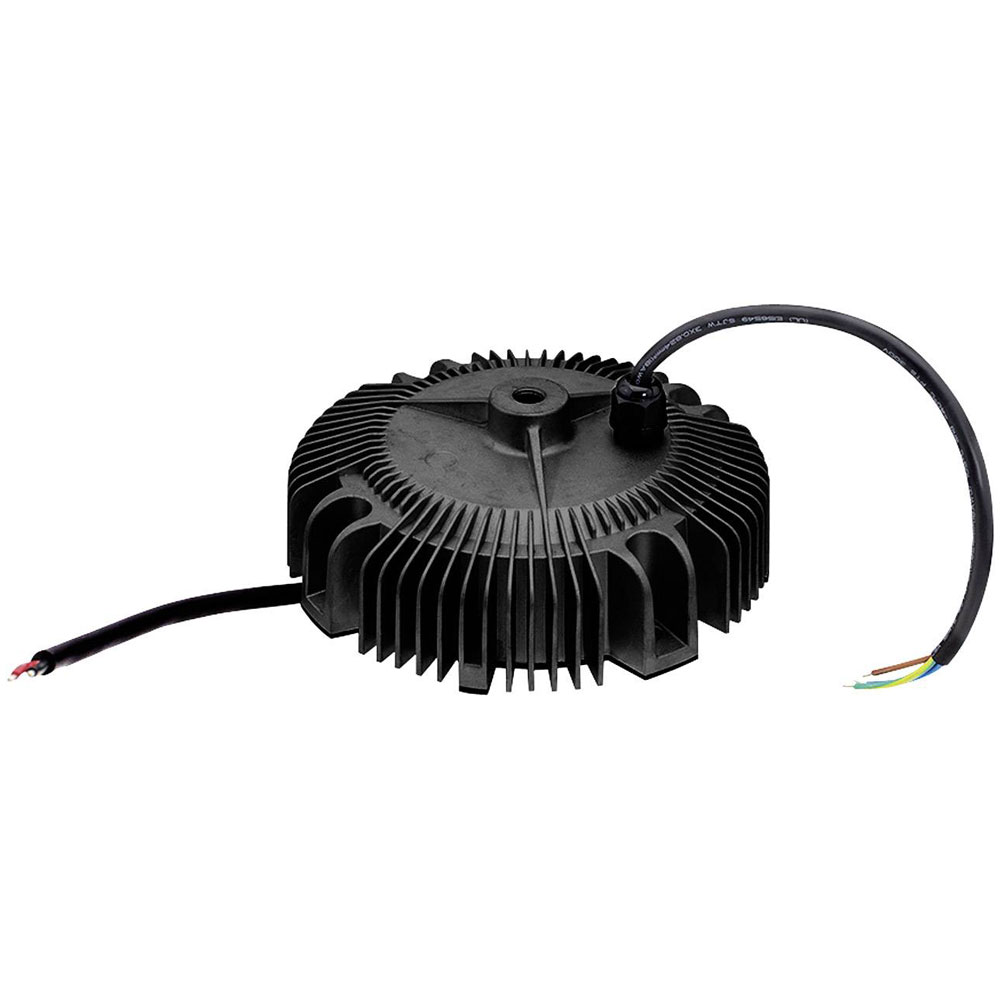

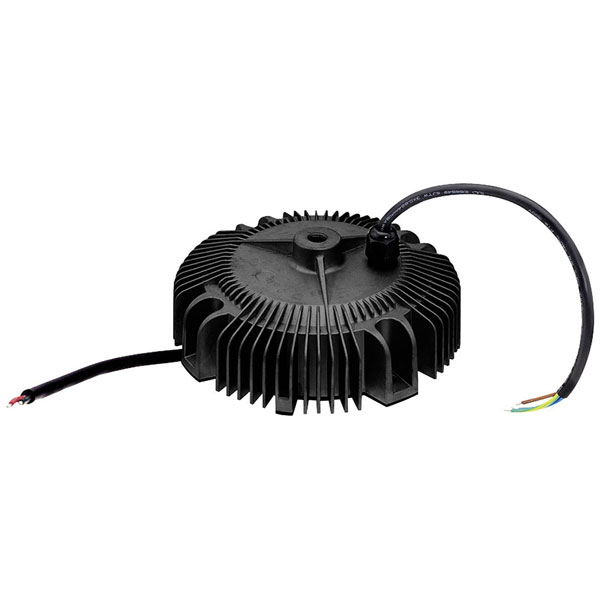

Mean Well Hbg-240-48B LED Driver 240W 5A 20.8-48V DC Dimmable Surge Protection

Mean Well HBG-240-48B is an advanced LED driver designed for high efficiency and reliability in demanding applications. This LED driver operates with a constant current or constant voltage configuration, providing a power output of 240 watts and a current of up to 5 amps, suitable for voltages ranging from 20.8 to 48 volts DC. It features a built-in power factor correction (PFC) circuit and robust surge protection, ensuring optimal performance and safety in various environmental conditions. The dimmable functionality makes it ideal for applications such as architectural lighting, stadium lighting, and industrial lighting systems, where precise control of lighting levels is crucial. Additionally, the HBG-240-48B is approved for use on furniture, offering versatility in integration with different design elements.

Type	LED driver
Output Voltage	20.8V DC
Output Current	240 W (max)
Input Voltage	305V AC
Connection	Open end cable
Dimensions	(L x W x H) 69 x 162 x 162 mm
Height	162mm
IP Rating	IP67
Length	69mm
Max. output current	5A
Max. power	240W
Minimum Input Volage	90V AC
No. of Inputs	1
No. of outputs	1
Protection Class	I
Weight	2.1kg
Width	162mm
