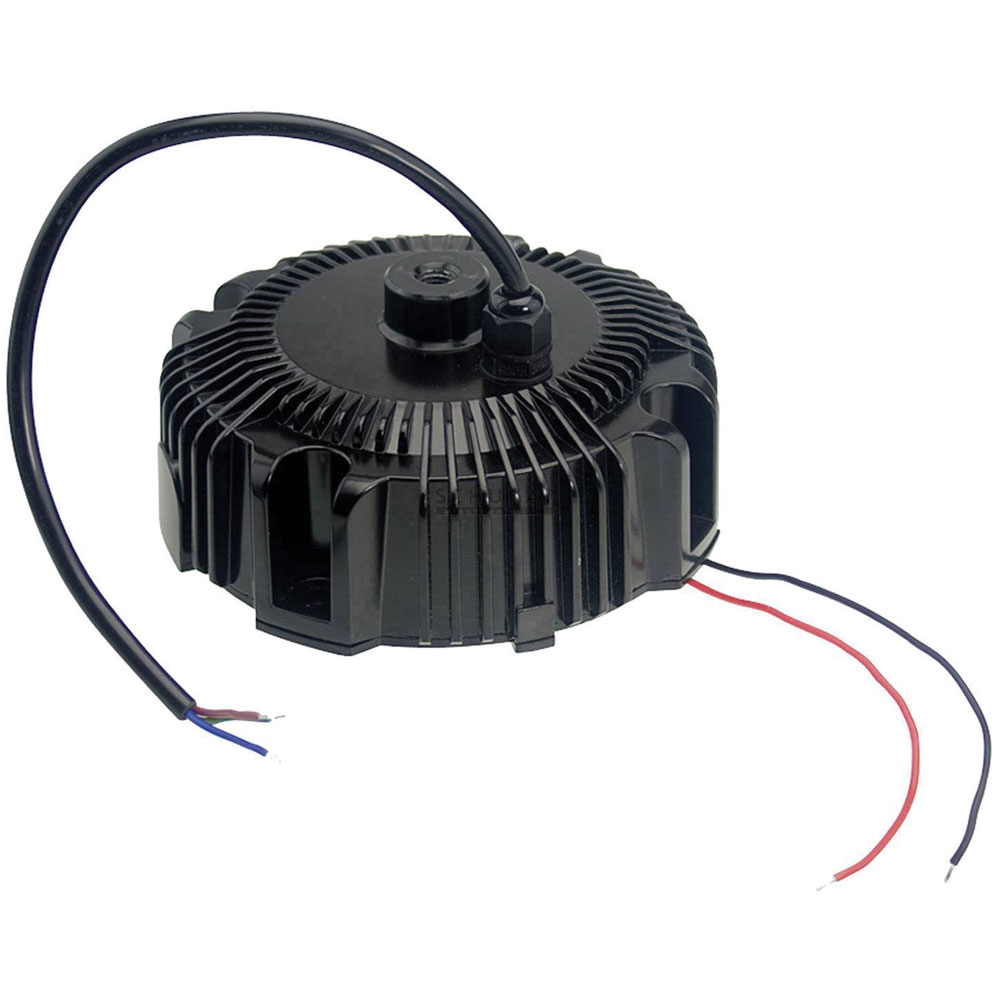

Mean Well HBG-240-48A LED driver 240W 5A 24-48V dimmable IP65/IP67 potting

The Mean Well HBG-240-48A is an LED driver designed to provide a constant current of 5 A and a variable voltage of 24 to 48 V DC, with a power capability of 240 W. This versatile LED transformer is dimmable and equipped with a PFC circuit and surge protection, making it suitable for both residential and commercial lighting applications, including integration into furniture. It's ideal for powering LED strips and other LED lighting systems that require reliable voltage control and enhanced power

Type	LED driver
Connection	Open end cable
Dim	(L x W x H) 69 x 162 x 162 mm
Height	162mm
Input voltage (max.)	305V AC
IP rating	IP65
Length	69mm
Max. output current	5A
Max. power	240W
Min. input voltage	90V AC
Misc Attribute	Synchronised
No. of inputs	1
No. of outputs	1
Output current (max.) - rounded	5A
Output voltage (max.)	48V DC
Output voltage (min.)	24V DC
Power range	240 W (max)
Protection class	I
Weight	2.1kg
Width	162mm
