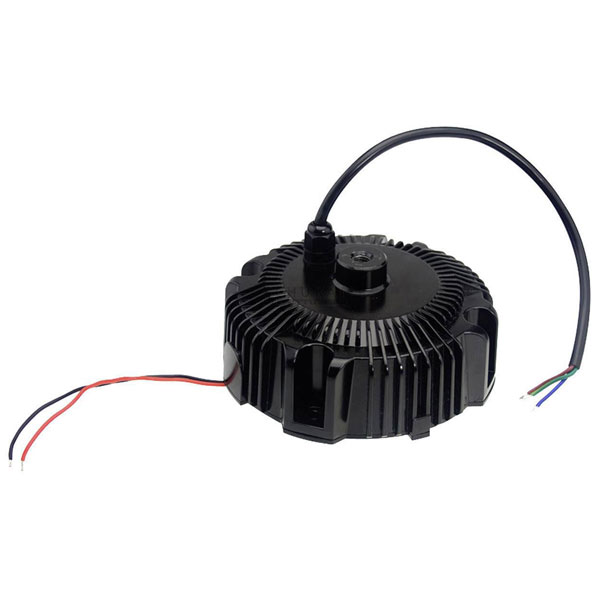

Mean Well HBG-160-60B LED driver 156W 60V dimmable surge protected

Mean Well
Order Code:

05-0731

Brand: Mean Well MPN: HBG-160-60B EAN-13: 4021087049825
Qty Unit Price (Ex VAT)
1+ £59.34
5+ £54.78
10+ £52.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 26/12/2025

The Mean Well HBG-160-60B LED driver is a 156 W, 2.6 A, 60 V DC dimmable power supply with a 3-in-1 dimmer and surge protection. It features constant voltage and constant current capabilities, making it suitable for flammable surfaces and approved for use on furniture. Designed for outdoor applications, this LED driver is ideal for LED strips and lighting systems requiring robust, reliable power management.
Type LED driver
Output Voltage 60V DC
Max Output Power 156W
Output Current 2.6A
Colour Black
Connection Open end cable
Dimensions (L x W x H) 132 x 132 x 66.5 mm
Height 66.5mm
IP Rating IP67
Length 132mm
Max. output current 2.6A
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
Width 132mm
