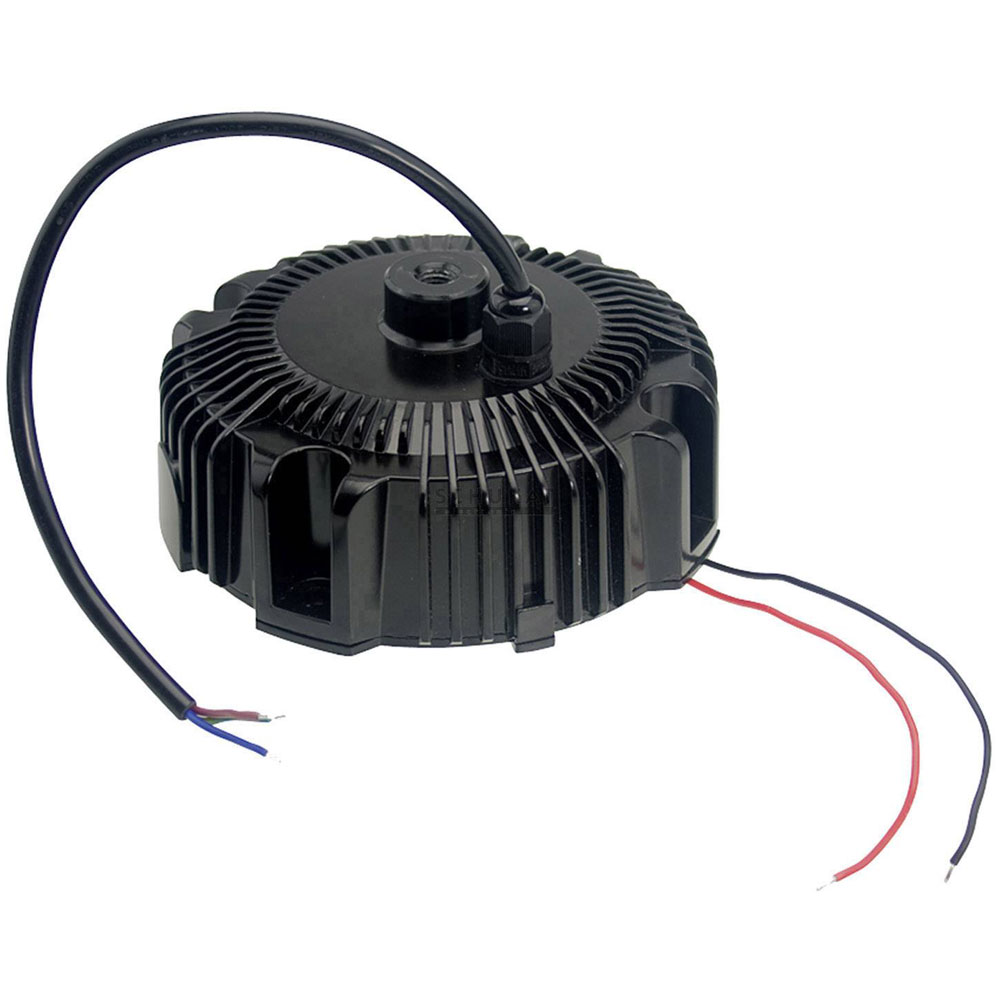

Mean Well HBG-100-60DA LED driver 96W dimmable outdoor surge protection

Mean Well
Order Code:

05-0725

Brand: Mean Well MPN: HBG-100-60DA EAN-13: 4021087049894
Qty Was Unit Price (Ex VAT)
1+ £57.94 £48.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The Mean Well HBG-100-60DA LED driver offers constant current operation at 96 W and 1.6 A with a voltage range of 36 - 60 V DC. It features DALI dimming, an integrated PFC circuit, and surge protection, making it suitable for outdoor applications. This LED driver is ideal for powering LED lighting systems that require reliable performance and overvoltage protection.
Type LED driver
Connection Open end cable
Factory colour Black
Height 66.5mm
Inputs 1
IP Rating IP67
Length 132mm
Max. output current 1.6A
Max. power 96W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 1.6A
Output voltage (max.) 60V DC
Output voltage (min.) 36V DC
Power range 96 W (max)
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
