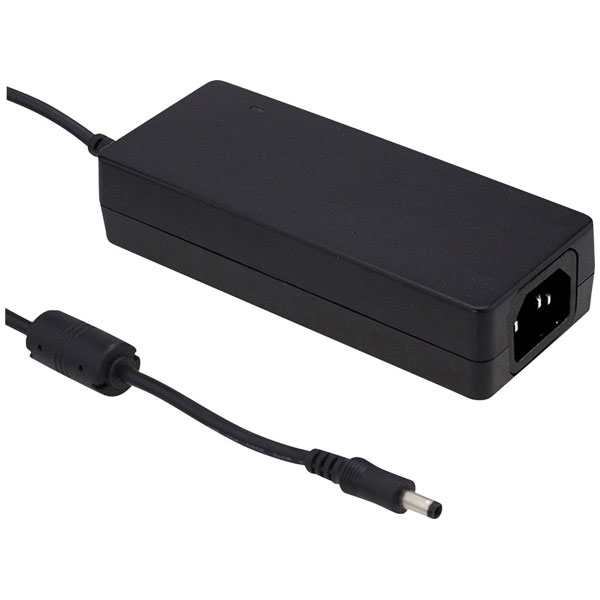

Mean Well GSM90A24-P1M GSM series desktop PSU 24V DC 3.75A 90W medical compliant

The Mean Well GSM90A24-P1M is a fixed voltage desktop power supply unit that delivers 24 V DC at 3.75 A with a power output of 90 W. It is ideal for applications requiring stable and reliable power, such as laboratory and testing environments. This device offers efficient power conversion suitable for desktop and bench use.

Type	Desktop Power Supply
Input Voltage	80-264V AC
Output Voltage	24V DC
Plug Type	5.5/2.5 coaxial connector
Output Current	3.75A
Power Rating	90W
Connections	Cable with connector
EuP Status	Level VI
Height	32mm
Inputs	1
Length	145mm
Max. output current	3.75A
Misc Attribute 2	Pulsed
Number of Outputs	1
Weight	450g
Width	60mm
