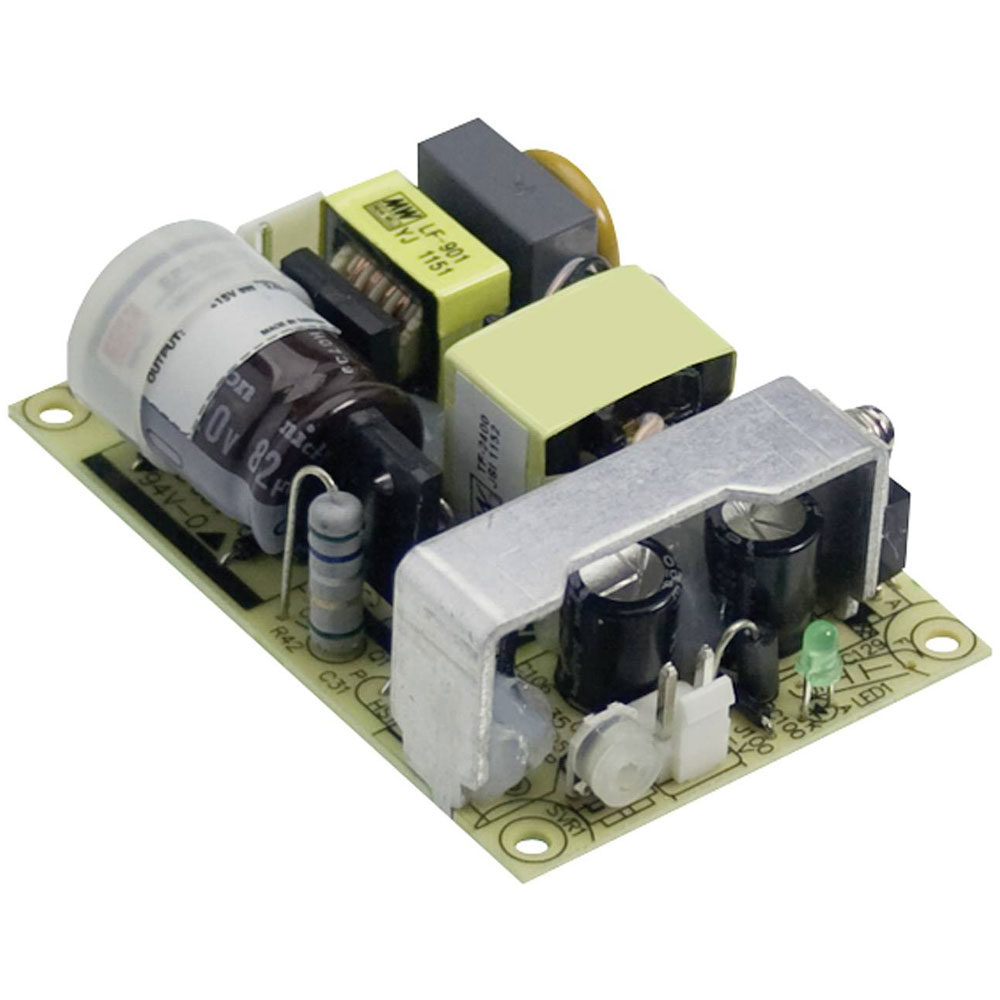

Mean Well EPS-35-12 SMPSU 12V DC 3A 36W compact open frame universal input

The Mean Well EPS-35-12 is a PCB mount switching power supply unit with a rated output of 12 V DC and 3 A, delivering up to 36 W. Its open-frame design with solder lugs is ideal for PCB equipping and custom applications. Typical uses include powering electronic devices and circuits that require stable DC voltage.

Type	SMPSU
Nominal value output current 1	3A
Number of Outputs	1
Power Rating	36W
1st secondary output voltage	12V
2nd secondary output voltage	12V
3rd secondary output voltage	12V
Depth	76.2mm
Dimensions (L x W x H)	76.2 x 50.8 x 24mm
Height	24mm
Max. output current 1	3A
Maximum input voltage [AC]	264V
Minimum Input Voltage [AC]	90V
Misc Attribute 1	Synchronised
Misc Attribute 3	open
Nominal value output voltage 1 [DC]	12V
Nominal value output voltage 2	12V
Nominal value output voltage 3	12V
Number of Inputs	1
Output voltage stabilized	12V
Rated supply voltage AC 50 Hz	12V
Rated supply voltage AC 60 Hz	12V
Rated supply voltage DC	12V
Type of electric connection	Pin strip for nylon crimp connectors
Voltage type (supply voltage)	12V
Weight	85g
Width	50.8mm
