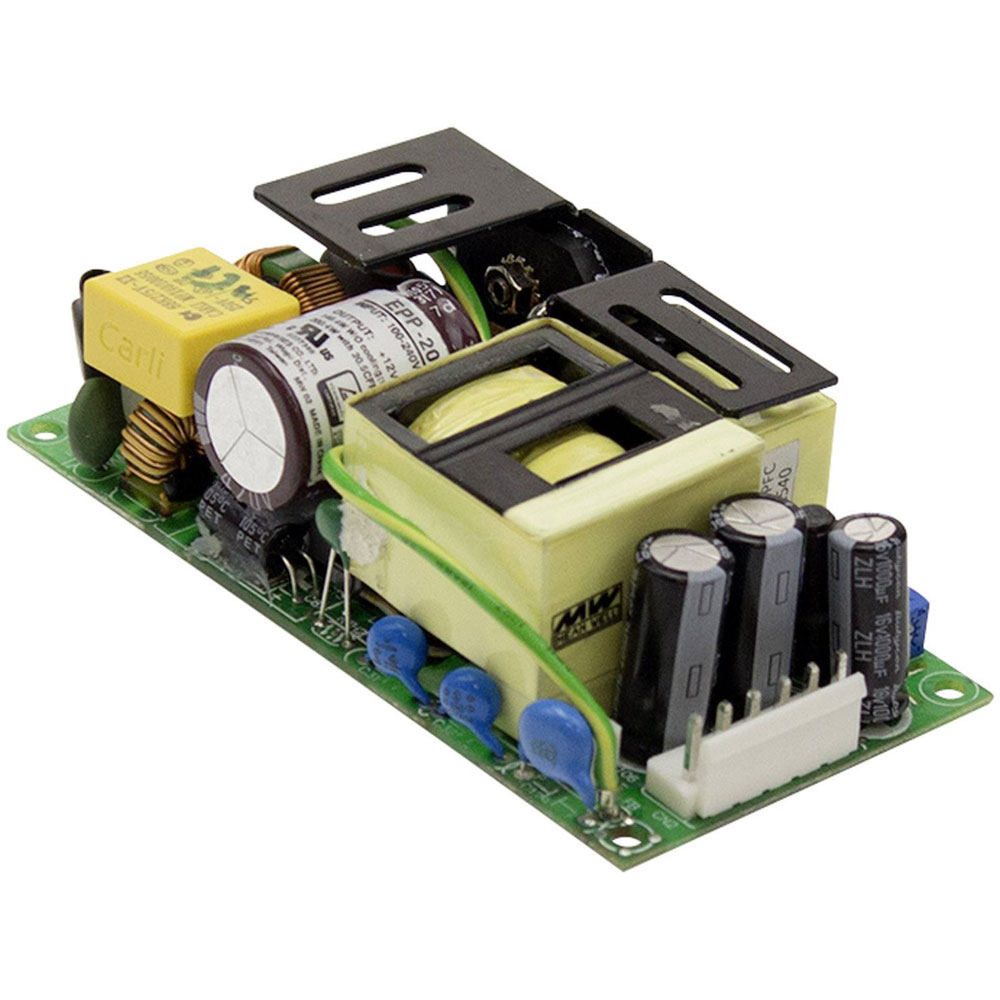

Mean Well EPP-200-48 SMPSU 50.4V DC 4.2A 201.6W AC/DC Converters

Mean Well EPP-200-48 is a reliable computer power supply unit designed for efficient power conversion, providing a stable output of 50.4 V DC at 4.2 A with a total power capacity of 201.6 W. This switched-mode power supply (SMPSU) is suitable for applications requiring precision and consistency, such as industrial control systems, automation equipment, and communication devices. Engineered for high performance, it features protective measures against over-voltage, over-current, and short circuits, ensuring safe and dependable operation across varying load conditions. Its compact design and high power density make it an ideal choice for applications where space savings alongside robust performance are paramount. Mean Well's commitment to quality is evident in the EPP-200-48's adherence to international safety standards, providing engineers with confidence in its integration into critical systems.

Type	EPP-200-48
Connection	Pin strip for nylon crimp connectors
Dimensions	(L x W x H) 101.6 x 50.8 x 29 mm
Height	29mm
Length	101.6mm
Max. output current	4.2A
Maximum Temperature	+70°C
Minimum Temperature	-30°C
MTBF	500200h
No. of Inputs	1
No. of outputs	1
Output current (max.) - rounded	4.2A
Output voltage (max.)	50.4V DC
Output voltage (min.)	45.6V DC
PFC	Yes (built-in)
Power	201.6W
Product Type	SMPSU
PSU features	Adjustable voltage output
Weight	190g
Width	50.8mm
