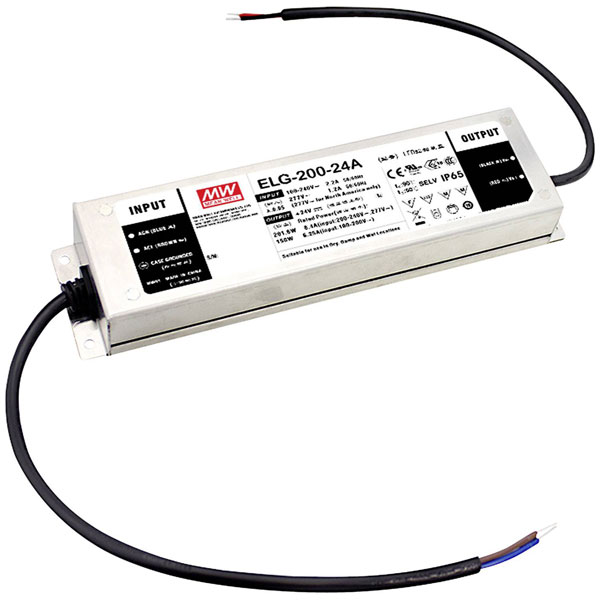

Mean Well ELG-200-24DA-3Y LED driver 201.6W 8.4A IP67 outdoor suitable

Mean Well
Order Code:

05-0475

Brand: Mean Well MPN: ELG-200-24DA-3Y EAN-13: 4021087038140
Qty Unit Price (Ex VAT)
1+ £40.34
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well ELG-200-24DA-3Y LED driver is a constant voltage and constant current power supply unit with a power rating of 201.6 W and operates within 12 - 24 V DC. It features a PFC circuit, surge protection, and overvoltage protection, making it suitable for outdoor use on flammable surfaces. This driver is ideal for LED applications requiring DALI compatibility and high reliability in varied environments.
Type LED transformer
Connection Open end cable
Dim (L x W x H) 244 x 71 x 37.5 mm
Factory colour Metal
Height 37.5mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 244mm
Max. output current 8.4A
Max. power 201.6W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 8.4A
Output voltage (max.) 24V DC
Output voltage (min.) 12V DC
Power (min.) 150W
Power range 150 up to 201.6 W
Protection Class I
Width 71mm
