Mean Well ELG-200-24A-3Y LED driver 201.6W 21.6-26.4V IP65 adjustable

Mean Well
Order Code:

05-0473

Brand: Mean Well MPN: ELG-200-24A-3Y EAN-13: 4021087038171
Qty Unit Price (Ex VAT)
1+ £40.34
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

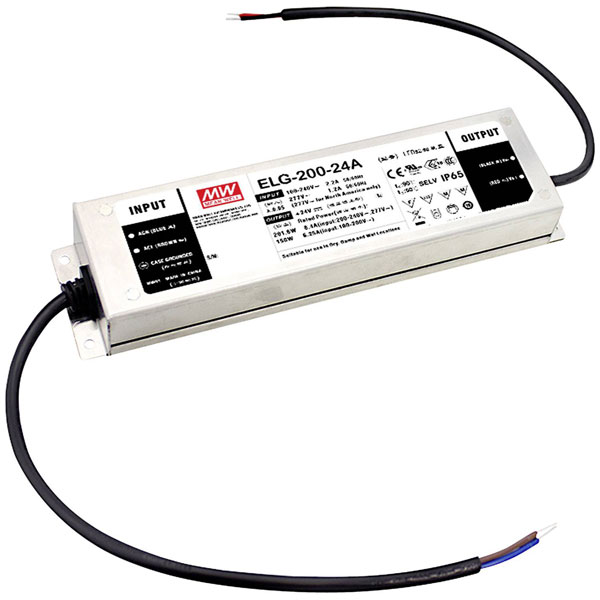

The Mean Well ELG-200-24A-3Y is a robust LED transformer providing a constant voltage and constant current output with an adjustable range of 21.6 - 26.4 V DC and 4.2 - 8.4 A. It features surge protection, overvoltage safeguards, and is suitable for installation on flammable surfaces. This 201.6 W LED driver is ideal for LED strip lighting and other similar applications, ensuring reliable performance with a power factor
Type LED transformer
Connection Open end cable
Dim (L x W x H) 244 x 71 x 37.5 mm
Factory colour Metal
Height 37.5mm
Input voltage (max.) 305V AC
IP Rating IP65
Length 244mm
Max. output current 8.4A
Max. power 201.6W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 8.4A
Output current (min.) 4.2A
Output voltage (max.) 26.4V DC
Output voltage (min.) 21.6V DC
Power (min.) 150W
Power range 150 up to 201.6 W
Protection Class I
Width 71mm
