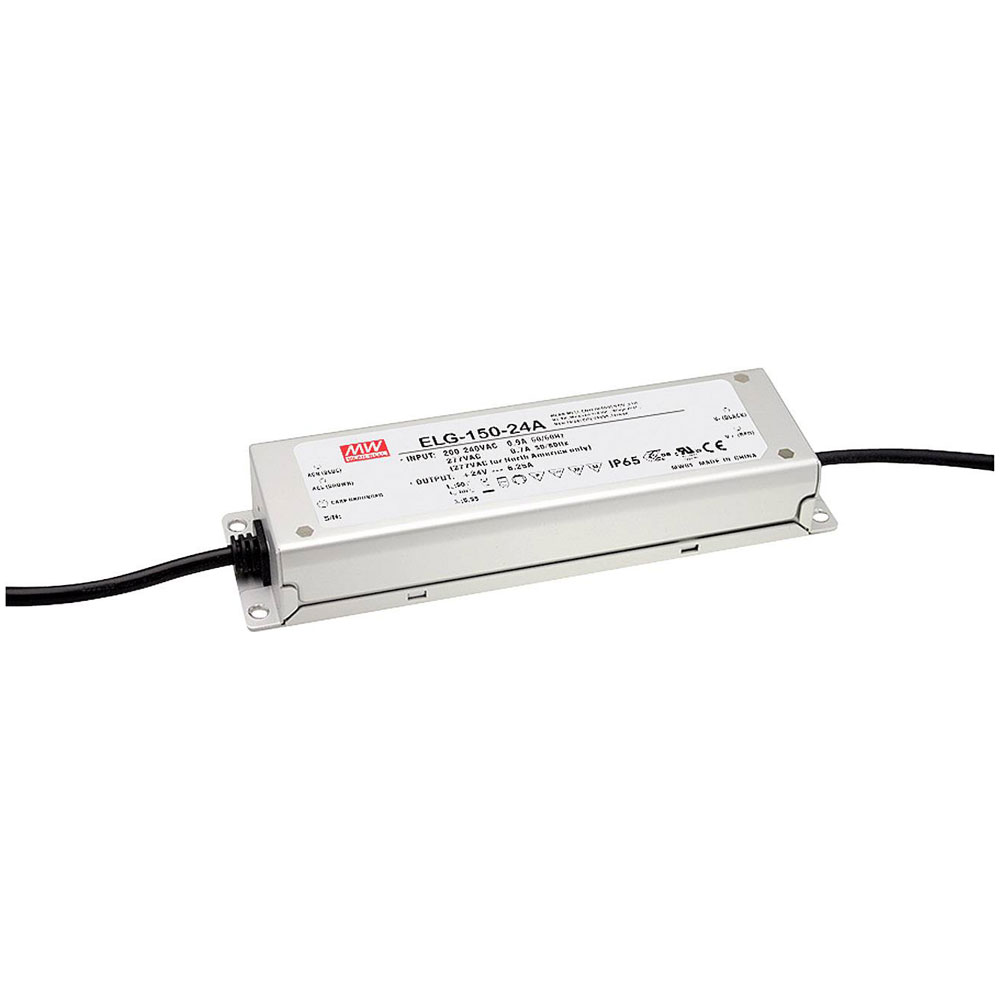

Mean Well ELG-150-24A-3Y with surge protection 150W 24V LED driver

Mean Well
Standard range
Order Code:

05-0455

Brand: Mean Well MPN: ELG-150-24A-3Y
Qty Unit Price (Ex VAT)
1+ £27.23
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
118 in stock, despatched in 4 working days

The Mean Well ELG-150-24A-3Y is a constant voltage and constant current LED driver with a power rating of 150 W and an adjustable DC output of 21.6 to 26.4 volts. It features surge protection and is suitable for flammable surfaces, incorporating a PFC circuit for efficient operation. Typical applications include powering LED strips and other LED lighting solutions where reliable performance and overvoltage protection are crucial.
Type LED transformer
Connection Open end cable
Dim (L x W x H) 219 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
Input voltage (max.) 305V AC
IP rating IP65
Length 219mm
Max. output current 6.25A
Max. power 150W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 6.25A
Output current (min.) 3.2A
Output voltage (max.) 26.4V DC
Output voltage (min.) 21.6V DC
Power (min.) 105W
Power range 105 up to 150 W
Protection class I
Weight 950g
Width 63mm
