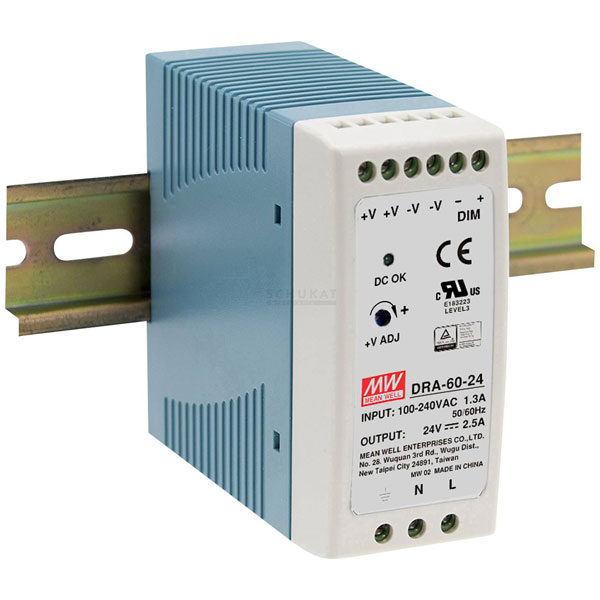

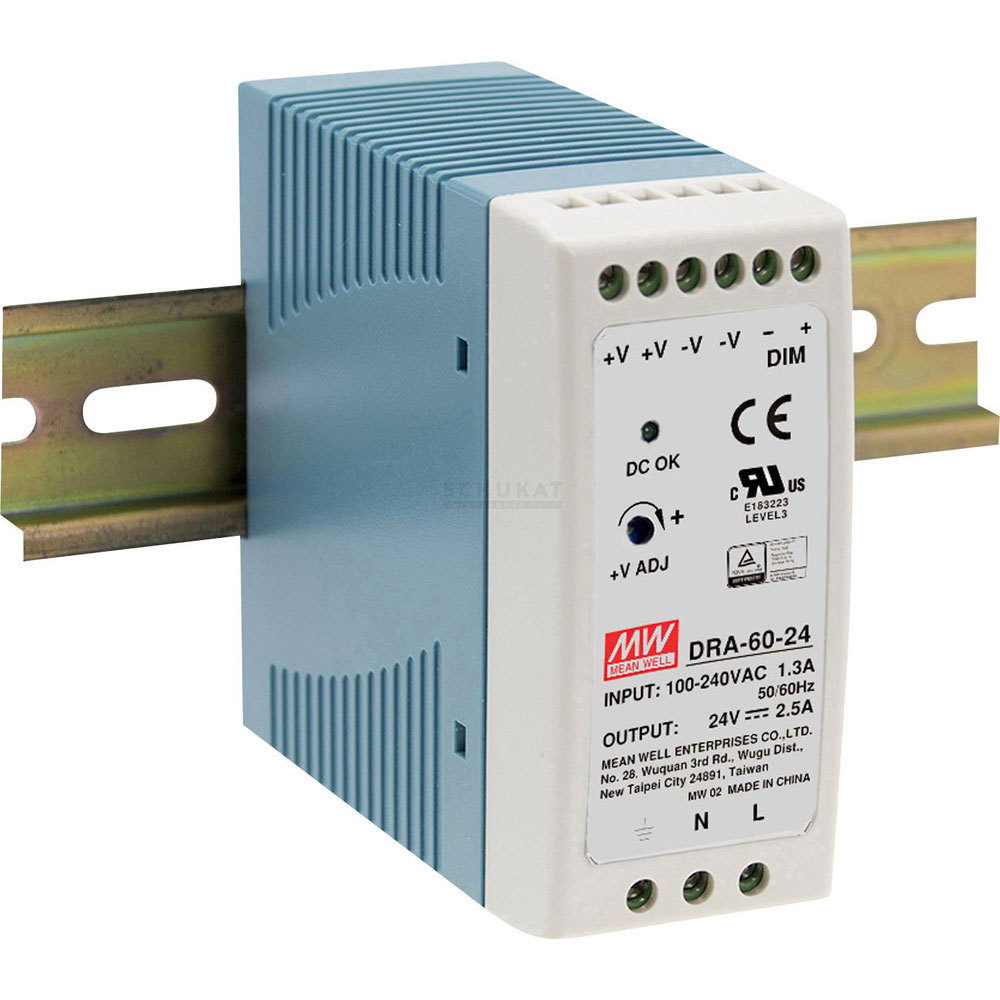

Mean Well DRA-60-24 PSU 24V DC 2.5A 60W 1 output DIN rail mounted

Mean Well
Standard range
Order Code:

05-0421

Brand: Mean Well MPN: DRA-60-24
Qty Unit Price (Ex VAT)
1+ £51.02
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
141 in stock, despatched in 4 working days

The Mean Well DRA-60-24 is a rail-mounted power supply unit designed for industrial applications. It delivers 24 V DC at 2.5 A with a total power of 60 W using screw terminals for connectivity. This PSU is ideal for use in industrial environments requiring reliable and efficient power distribution.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 100 x 90 x 40 mm
Height 40mm
Input Voltage 90-264 V/AC, 47-63Hz
Input voltage (max.) 264V AC
Length 100mm
Manufacturer part # DRA-60-24
Max. output current 2.5A
Max. temperature 70°C
Min. input voltage 90V AC
Min. temperature -30°C
Misc Attribute 1 DRA-60-24
Misc Attribute 2 Pulsed
MTBF 436400h
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 2.5A
Output type (power supply units) Adjustable
Output voltage 24V DC
Output voltage (max.) 30V DC
Output voltage (min.) 24V DC
Output voltage (nominal) 24V DC
Phases 1
Power 60W
PSU features Adjustable voltage output
Weight 300g
Width 90mm
