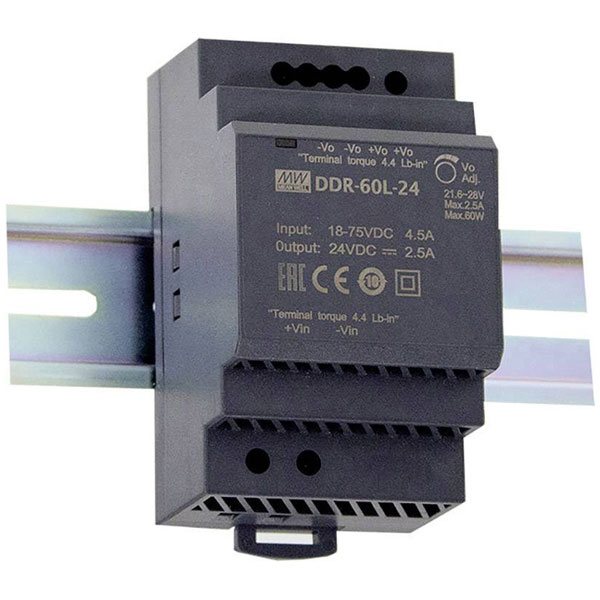

Mean Well DDR-60L-24 Rail mounted DC/DC converter 24V 2.5A 60W 1 output

Mean Well
Standard range
Order Code:

05-0314

Brand: Mean Well MPN: DDR-60L-24
Qty Unit Price (Ex VAT)
1+ £35.58
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
161 in stock, despatched in 4 working days

The Mean Well DDR-60L-24 is a rail-mounted DC/DC converter with a 24 V DC output, capable of delivering up to 2.5 A and 60 W of power. This industrial power supply unit is ideal for various applications requiring reliable voltage conversion in a compact format. Its single-output design makes it suitable for straightforward integration into DIN rail systems.
Type Rail mounted DC/DC converter (DIN)
Connection Clamp
Dim (L x W x H) 52.5 x 54.5 x 90 mm
Efficiency 92%
Height 90mm
Input Voltage 18-75V DC
Input voltage (max.) 75V DC
Length 52.5mm
Manufacturer part # DDR-60L-24
Max. output current 2.5A
Min. input voltage 18V DC
Misc Attribute DDR-60L-24
MTBF 611000h
No. of outputs 1
Nominal input voltage 48 V/DC
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 2.5A
Output type (power supply units) Adjustable
Output voltage 24V DC
Output voltage (max.) 28V DC
Output voltage (min.) 21.6V DC
Output voltage (nominal) 24V DC
Power 60W
Weight 216g
Width 54.5mm
