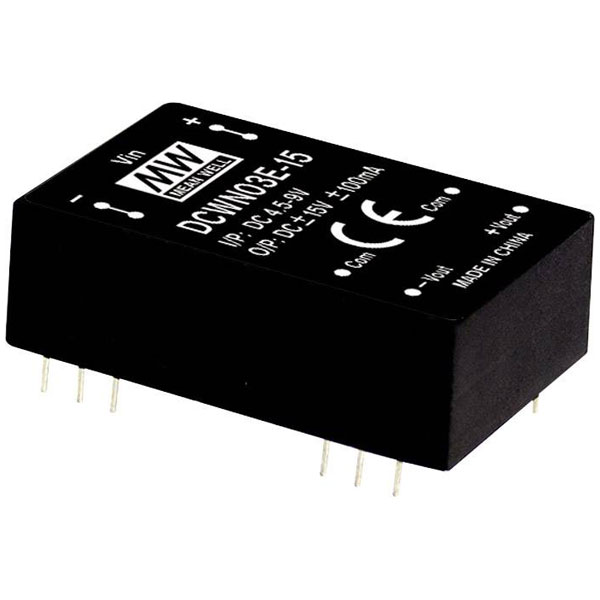

Mean Well DCWN03E-15 DCWN03 converter 3W 2 outputs 3000V insulation

Mean Well
Order Code:

05-0256

Brand: Mean Well MPN: DCWN03E-15 EAN-13: 4021087046855
Qty Unit Price (Ex VAT)
1+ £10.34
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 26/12/2025

The Mean Well DCWN03E-15 is a DC/DC converter module offering dual outputs with a current rating of 100 mA and a power output of 3 W. It's ideal for precise power regulation in electronic systems, ensuring efficient voltage conversion and stability. Typical applications include telecommunications equipment, industrial control systems, and test instrumentation.
Input Voltage Range 9V DC
Output Current 100mA
Number of Outputs 2
Connection Pins
Dim (L x W x H) 31.8 x 20.3 x 10.2 mm
Efficiency (max.) 80%
Height 10.2mm
Insulation Voltage 3000V DC
Length 31.8mm
Max. output current 100mA
Min. input voltage 4.5V DC
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Power 3W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 20.3mm
