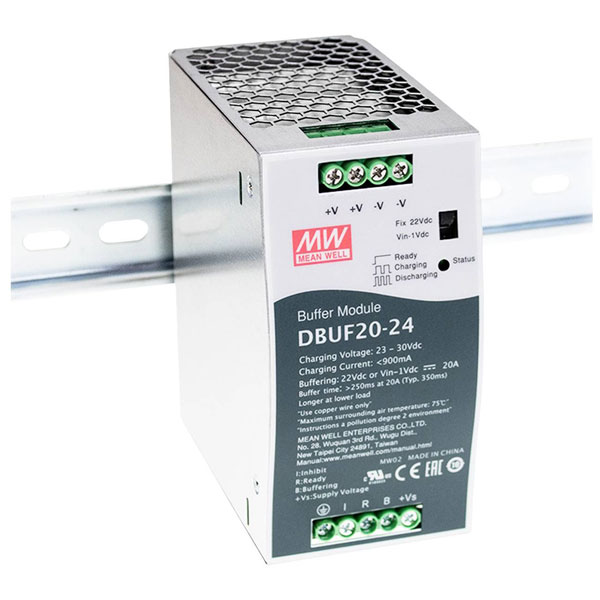

Mean Well DBUF20-24 DIN rail buffer module 24V 20A 1 pc

Mean Well
Order Code:

05-0216

Brand: Mean Well MPN: DBUF20-24 EAN-13: 4021087078825
Qty Unit Price (Ex VAT)
1+ £95.98
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well DBUF20-24 is a DIN rail mount buffer module that operates at 24 V and supports a current of 20 A, designed for industrial power supply applications. With screw terminal connections, it provides a reliable power back-up solution to ensure system stability during power interruptions. Typical applications include maintaining continuous power to industrial systems and equipment, where consistent performance is critical.
Connection Screw terminal
Dim (L x W x H) 114.90 x 63 x 125.20 mm
Height 125.20mm
Input voltage (max.) 30V DC
Length 114.90mm
Max. output current 20A
Min. input voltage 23V DC
Output current (max.) - rounded 20A
Output voltage (nominal) 24V
Type DIN rail mount buffer module
Width 63mm
