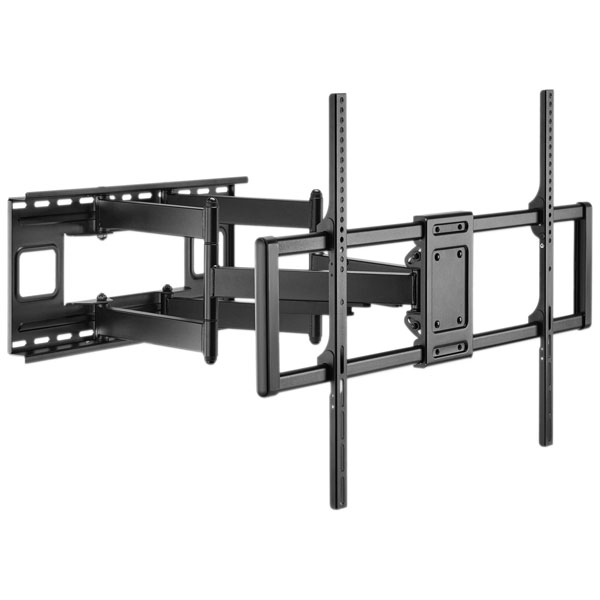

Manhattan 462358 presents a versatile product designed for securely mounting televisions in size ranges from 60 to 120 inches. This tiltable and swivelling wall mount, also referred to as 3338832 - Manhattan 462358, offers flexible viewing angle adjustments, enhancing the user experience by allowing convenient tilting and swivelling capabilities to reduce glare and improve screen visibility. Constructed with robust materials, it ensures both stability and safety, accommodating the hefty load demands of large-screen televisions. Engineering applications frequently employ this mount in commercial settings such as conference rooms, educational institutions, and public venues, where adaptable viewing angles are crucial for audience engagement. This product meets rigorous quality standards, making it a reliable choice for professional installations.
| Type |
TV wall mount |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Built-in spirit level |
Yes |
| Cable management |
Yes |
| Colour |
Black |
| Depth (max) |
70.3cm |
| Distance to the wall (max) |
70.3 cm |
| Distance to the wall (min) |
7.5 cm |
| Height |
630mm |
| Housing Material |
Steel |
| Manual |
Yes |
| Master (outer) case gross weight |
18 kg |
| Master (outer) case height |
78mm |
| Master (outer) case length |
1050mm |
| Master (outer) case width |
340mm |
| Max. load Capacity |
120kg |
| Maximum screen size |
3.05 m (120) |
| Maximum VESA mount |
900 x 600 mm |
| Maximum weight capacity |
120 kg |
| Minimum screen size |
152.4 cm (60) |
| Minimum VESA mount |
200 x 200 mm |
| Mounting kit |
Yes |
| Mounting Type |
Wall |
| Number of displays supported |
1 |
| Package depth |
355mm |
| Package height |
95mm |
| Package type |
Box |
| Package weight |
16.9 kg |
| Package width |
1055mm |
| Panel mounting interface |
200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400,800 x 600,900 x 600 |
| Pneumatic technology |
No |
| Product colour |
Black |
| Products per master (outer) case |
1 pc(s) |
| Quantity per pack |
1 pc(s) |
| Suitable For |
152,4 cm (60") - 304,8 cm (120") |
| Swivel angle range |
-60 - 60° |
| Swivel Range (left) |
60° |
| Swivel Range (right) |
60° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-15 - 5° |
| Tilt Range (bottom) |
15° |
| Tilt Range (top) |
5° |
| Weight |
17 |
| Width |
1010mm |
