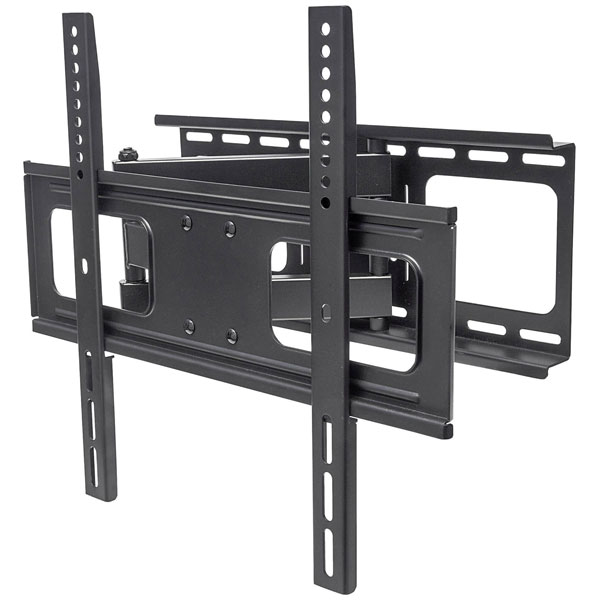

Manhattan 461252, also known as product number 1909757, is a TV wall mount engineered to accommodate both flat and curved televisions. This versatile unit offers tiltable and swivelling functionalities, allowing for optimal viewing angle adjustments to suit various room configurations. Constructed from robust materials, the wall mount is designed to support the weight and dimensions typical of modern curved TVs. It is particularly well-suited for residential and commercial installations where spatial efficiency and flexibility are paramount. Engineers and installers will appreciate its straightforward installation process, supported by comprehensive compatibility with diverse television models.
| Type |
TV wall mount |
| Colour |
Black |
| Depth |
62mm |
| Depth (max) |
6.2 cm |
| Dimensions |
(W x H x D) 480 x 430 x 62 mm |
| Distance to wall (max.) |
475mm |
| Distance to wall (min.) |
62mm |
| Harmonized System (HS) code |
85299097 |
| Height |
430mm |
| Holder Type |
Swivelling/tiltable |
| Housing Material |
Steel |
| Manual |
Yes |
| Max. load Capacity |
50kg |
| Maximum screen size |
139.7 cm (55) |
| Maximum VESA mount |
400 x 400 mm |
| Maximum weight capacity |
50 kg |
| Minimum screen size |
81.3 cm (32) |
| Minimum VESA mount |
200 x 200 mm |
| Mounting Type |
Wall |
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400 |
| Pneumatic technology |
No |
| Product colour |
Black |
| Suitable For |
81,3 cm (32") - 139,7 cm (55") |
| Swivel angle |
180° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-20 - 10° |
| Tilt Range (bottom) |
10° |
| Tilt Range (top) |
20° |
| Weight |
5.34kg |
| Width |
480mm |
