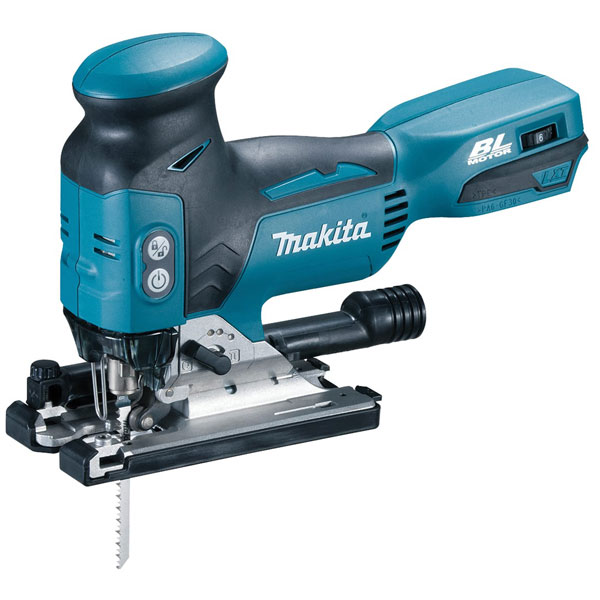

The Makita DJV181 Top Grip Jigsaw has a brushless motor with a soft no load function which automatically reduces the motor speed during idling to suppress the vibration of the machine body. Speed can be adjusted via the variable speed control dial.
The jigsaw is fitted with a rigid aluminium base, which bevels from 0 to 45°, left and right. With a change lever for 3 orbital (pendulum) settings and straight cutting. Blade changing is simple and easy, thanks to the tool-less blade change feature.
Other features include an improved dust extraction hose joint, blower function to clear wood dust from cutting line and a twin LED job light.
Comes as a Bare Unit, No Battery or Charger.
Specifications:
Strokes at No Load: 800-3,500/min.
Stroke Length: 26mm.
Bevel Capacity: 45°.
Capacity: Steel: 10mm, Wood: 135mm, Aluminium: 20mm.
Weight: 2.5kg.
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) |
Li-ion |
| Capacity Aluminium |
20 mm |
| Length of Stroke |
26 mm |
| Max. Bevel Range (Left) |
0 - 45 º |
| Max. Bevel Range (Right) |
0 - 45 º |
| Max. Cutting Capacity in Steel (90°) |
10 mm |
| Max. Cutting Capacity in Wood (90°) |
135 mm |
| Noise Uncertainty (K Factor) |
3 dB(A) |
| Nominal Battery Voltage |
18 V |
| Product Dimensions (L x W x H): |
298 x 77 x 189 mm |
| Sound Power Level (LWA) |
97 dB(A) |
| Sound Pressure Level (LpA) |
89 dB(A) |
| Strokes per Minute (SPM) |
800 - 3500 min?¹ |
| Tool weight with battery |
2.3 - 2.6kg |
| Vacuum cleaner connection Ø in / out |
23 / 28 mm |
| Vibration Level, Cutting Boards |
6,5 m/s² |
| Vibration Level, Cutting Sheet Metal |
5,0 m/s² |
| Vibration Uncertainty (K Factor), Cutting Boards |
1,5 m/s² |
| Vibration Uncertainty (K Factor), Cutting Sheet Metal |
1,5 m/s² |
