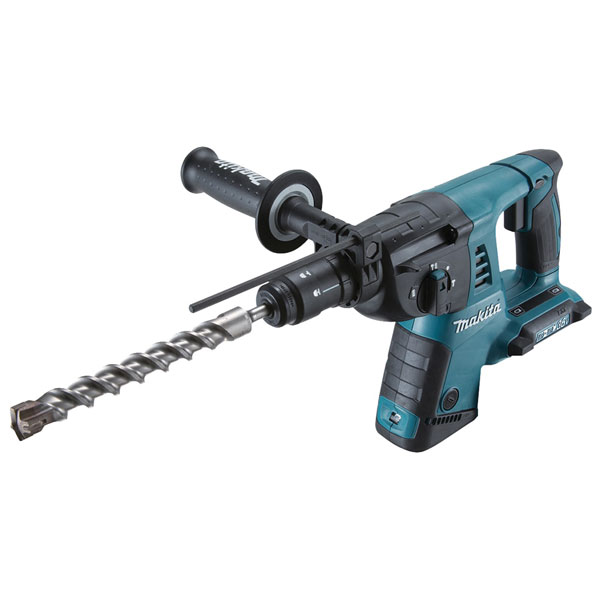

The Makita DHR264 SDS Plus Rotary Hammer has a compact design with 40 bit angle settings. It has 3 modes of operation: Rotation, Hammering and Rotation Only.
An ergonomic soft grip provides increased user comfort. It is powered by 2 x 18V Li-ion batteries (NOT Supplied) in series to supply energy to the powerful 36 Volt DC motor drive system.
When different capacity batteries are used together, (for example 1 x 3.0Ah BL1830 and 1 x 4.0Ah BL1840, or fully charged BL1830 and 70% charged BL1830), the machine stops when the battery with less capacity gets empty.
Other features include a LED Job light with pre-glow, afterglow functions and a battery capacity warning lamp. Also comes with a quick-change chuck to allow for the use of standard straight shank drill bits.
Comes as a Bare Unit, No Battery or Charger.
Specifications:
No Load Speed: 0-1,200/min.
Impact Rate: 0-4,800/bpm.
Chuck Type: SDS Plus (Quick-Change).
Capacity: Steel 13mm, Wood 32mm, Concrete 26mm.
Weight: 4.7kg.
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) |
Li-ion |
| Drilling diameter with TCT core bit |
54mm |
| Impact Energy |
2,5 J |
| Impacts per Minute (IPM) |
0 - 5000 min?¹ |
| Max. Drilling Diameter in Concrete |
26mm |
| Max. Drilling Diameter in Steel |
13mm |
| Max. Drilling Diameter in Wood |
32mm |
| No load speed |
0 - 1250 min?¹ |
| Noise Uncertainty (K Factor) |
3 dB(A) |
| Nominal Battery Voltage |
2 x 18 V |
| Optimum Drilling Diameter Range in Concrete |
4 - 18mm |
| Product Dimensions (L x W x H): |
374 x 116 x 232 mm |
| Sound Power Level (LWA) |
102 dB(A) |
| Sound Pressure Level (LpA) |
94 dB(A) |
| Tool weight with battery |
3.5 - 4.7kg |
| Vibration Level, Chiselling |
14,5 m/s² |
| Vibration Level, Drilling into metal |
5,0 m/s² |
| Vibration Level, Hammer Drilling Into Concrete |
16,5 m/s² |
| Vibration Uncertainty (K Factor), Chiselling |
1,5 m/s² |
| Vibration Uncertainty (K Factor), Drilling into metal |
1,5 m/s² |
| Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete |
2,0 m/s² |
