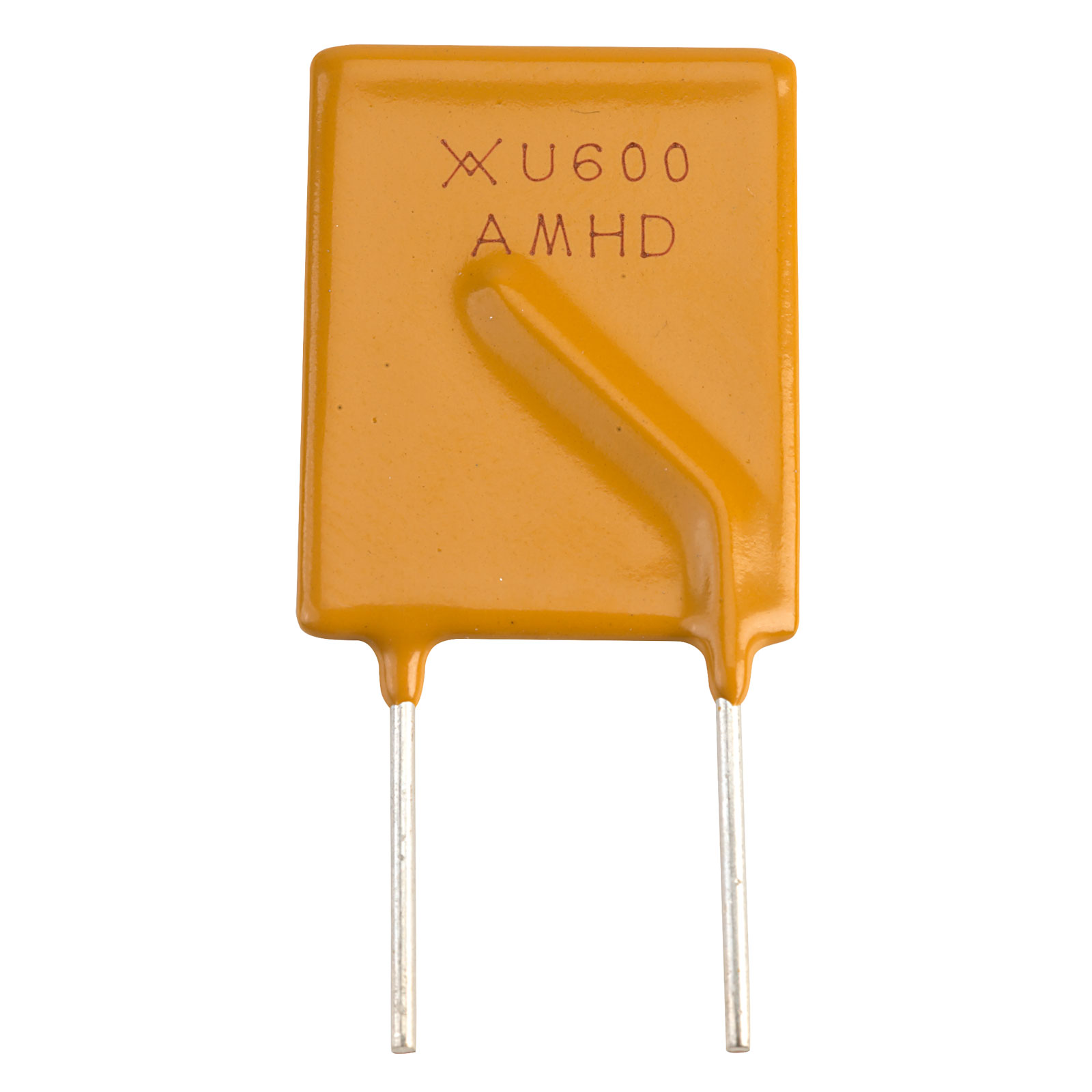

Littlefuse RUEF600 6.0A Polyswitch Fuse

Raychem
Order Code:

26-0815

Brand: Raychem MPN: RUEF600

Discontinued


The Littelfuse Polyswitch is a resettable device that performs like a fuse under overcurrent conditions, but is unique in that it will reset. As soon as an overcurrent condition is reached the Polyswitch heats up to its trip temperature.


  • Trip current 12A
  • Trip time 16 sec
  • Hold current 6A
  • Max voltage 30V
  • Max current 40A
  • Radial leaded package
  • Initial resistance 0.005 to 0.02R
  • Post-trip resistance 0.04R
  • Lead pitch 10.9mm
  • Dimensions 16.5mm x 7.6mm x 24.9mm
  • UL and TUV approved

Note: Previously manufactured by Raychem.

Current - Hold 6A
Current - Trip 12A
Current - Max 40A
Voltage - Max 30V
Time to Trip 16s
Package/ Case Radial leaded
Size/ Dimension 16.5mm
Lead Spacing 10.9mm
Height 24.1mm
Initial Resistance 0.02Ω
