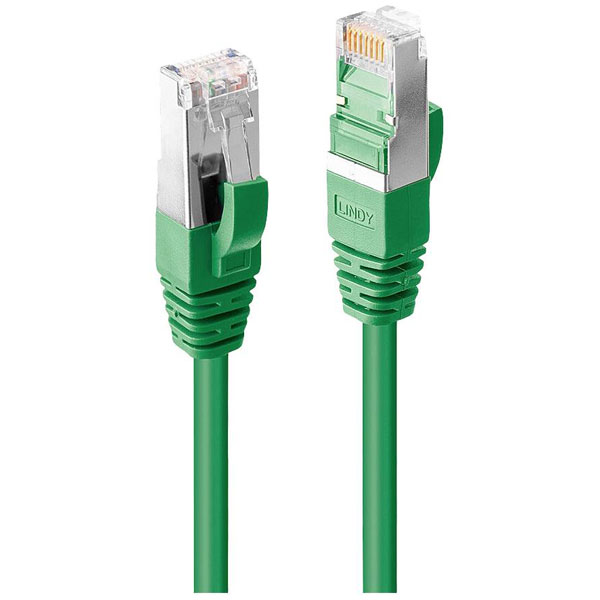

LINDY 47683 Network cable patch cable CAT 6A S/FTP 10m Green s

LINDY 47683 is a high-performance network cable assembly designed to meet the rigorous demands of modern data transmission systems. This Cat.6A S/FTP Ethernet patch cable features a length of 10 metres and is equipped with robust RJ45 connectors, making it suitable for a variety of applications where high-speed and reliable connectivity is essential. Constructed with low smoke zero halogen (LSZH) materials, this green cable not only ensures reduced emissions of smoke and toxic gases in environments like server rooms, data centres or office setups but also supports frequencies up to 500 MHz, facilitating data rates of up to 10 Gbps. Its shielding design combines foil and braid layers to minimise electromagnetic interference, ensuring optimal signal integrity in electrically noisy environments. The LINDY 47683 is ideal for connecting network devices such as switches, routers, and patch panels, supporting efficient network infrastructure in both commercial and industrial settings.

LAN Category	CAT 6A
Length	10m
Colour	Green
Type	RJ45 plug
AWG	27
AWG wire size	27
Bend radius (min)	7.2 cm
Cable Design	Round
Cable Length	10.00m
Cable shape	Round
Cable shielding	S/FTP (S-STP)
Cable standard	Cat6a
Cable Use	Networks
Cabling technology	10GBase-T
Certification	RoHS, REACH
Compliance certificates	REACH, RoHS
Conductor Material	Copper
Connection Type	RJ45
Connector 1	RJ-45
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 1 form factor	Straight
Connector 1 gender	Male
Connector 2	RJ-45
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 2 form factor	Straight
Connector 2 gender	Male
Connector contacts plating	Nickel/Gold
Connector housing material	Polycarbonate (PC)
Connector shield material	Aluminium
Connector shielding	Yes
Connector Version	straight
Core Material	Copper
Depth	21.5mm
Doesnt contain	Halogen
Frequency	500 MHz
Halogen free	Yes
Height	8.3mm
Jacket material	Low smoke zero halogen (LSZH)
Max. frequency	500MHz
No. of A connectors	1
No. of B connections	1
Operating temperature (T-T)	-10 - 60 °C
Outer Diameter	6 mm
Package type	Polybag
Product colour	Green
Product Type	Network cable, patch cable
Rack size	483 mm (19")
Shielding	S/FTP
Specification	CAT 6A
Storage temperature (T-T)	-20 - 75 °C
Sustainability compliance	Yes
Type A	RJ45 plug
Type B	RJ45 plug
Weight	0.34
Width	11.6mm
