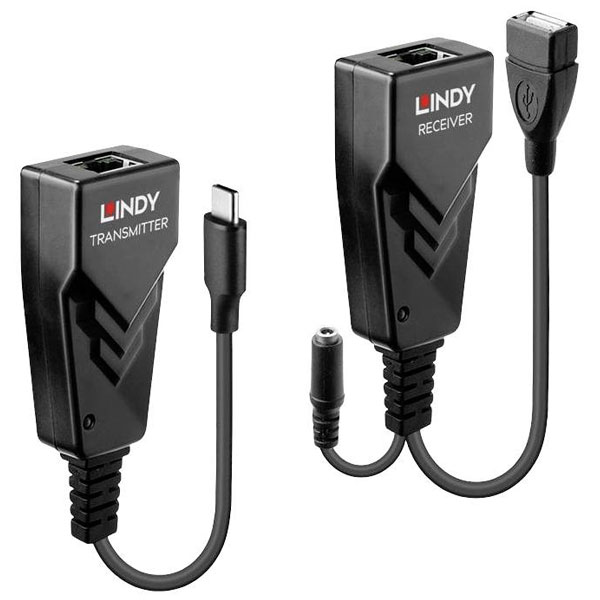

LINDY 43390 USB 2.0 Type C Cat.6 Extender 100m via RJ45 network cable

LINDY 43390, also known as 3207798, is a USB 2.0 Type C Cat.6 Extender designed to enable the transmission of USB signals over long distances up to 100 metres via RJ45 network cable. The extender allows for efficient data transfer and connectivity between USB Type C devices through a standard Ethernet network infrastructure, making it particularly suitable for industrial environments, data centres, and IT departments requiring extended reach without compromising signal integrity. It supports the USB 2.0 specification, ensuring compatibility with a wide range of devices, and utilises a robust Cat.6 cable to maintain high data rates and reliable performance. Ideal for applications such as remote workstation connections, industrial automation, and networked audio-visual systems, the LINDY 43390 provides an effective solution for overcoming the limitations of direct USB cabling over long distances.

Type	via RJ45 network cable
AC adapter included	Yes
Cable types supported	Cat5e, Cat6
Chipset	CH317Q, CH9317, RTL8211E
Colour	Black
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Data transfer rate	480 Mbit/s
DC-in jack	Yes
Depth	36mm
Ethernet LAN (RJ-45) ports	2
Height	22mm
Housing Material	Plastic
InterFaces (Input)	USB C® (USB 2.0)
InterFaces (output)	RJ45
Manual	Yes
Maximum transfer distance	100 m
Operating relative humidity (H-H)	0 - 80%
Operating temperature (T-T)	0 - 40 °C
Package depth	200mm
Package height	48mm
Package type	Box
Package volume	380 cm³
Package width	200mm
Product colour	Black
Product Type	USB extender
Quantity per pack	1 pc(s)
Rack size	483 mm (19")
Range (max.)	100m
RJ-45 ports quantity (receiver)	1
RJ-45 ports quantity (transmitter)	1
Storage relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-10 - 60 °C
Sustainability compliance	Yes
Transfer Type	via RJ45 network cable
USB Type-C ports quantity (receiver)	1
USB Type-C ports quantity (transmitter)	1
Weight	0.358
Width	69mm
