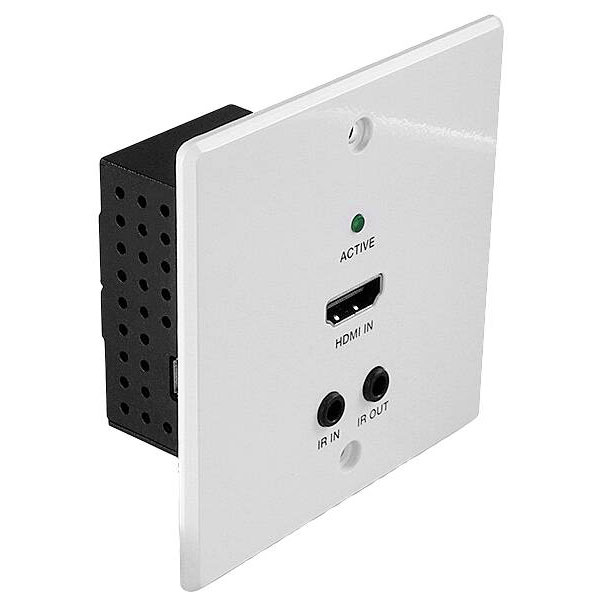

LINDY 38348 Wall Plate Extender HDMI Cat.6 70m 4K60 IR RS-232 EU Transmitter

LINDY 38348 - The LINDY 38348 Wall Plate Extender HDMI Cat.6 70m 4K60 IR RS-232 EU Transmitter, also known by its alternate description 3013224, is that enables the transmission of HDMI signals over Cat.6 cabling up to 70 metres, with support for 4K Ultra HD at 60Hz. This device incorporates IR and RS-232 pass-through, allowing for comprehensive control of AV devices across the network. Its robust design is well-suited for engineering applications that require reliable, long-distance AV signal distribution, such as in conference rooms, classrooms, and digital signage installations. The transmitter is engineered for EU wall plate compatibility, ensuring seamless integration into existing infrastructures.

Type	Extension
Bidirectional	Yes
Cable types supported	Cat6
Chipset	VS010
Colour	White
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Depth	80mm
Design Height	38mm
Dimensions	(L x W x H) 80 x 80 x 38 mm
Display Resolution	3840 x 2160 Pixel
Extended display identification data (EDID)	Yes
Frame rate	60Hz
HDBaseT port	Yes
HDCP	Yes
HDCP version	2.2
HDMI in	1
HDR support	Yes
Height	38mm
High Dynamic Range (HDR) supported	Yes
Infrared (IR) frequency range	20 - 60 kHz
Length	80mm
Manual	Yes
Maximum refresh rate	60 Hz
Maximum resolution	3840 x 2160 pixels
Maximum transfer distance	70m
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating voltage (transmitter)	24 V
Output Current	1 A
Package depth	133mm
Package height	95mm
Package weight	540g
Package width	152mm
Power source type	DC
Product colour	White
Product Type	Extension
Range (max.)	70m
Remote (IR) input	1
Remote (IR) output	1
Resolution (max.)	3840 x 2160 p
RJ-45 output ports	1
RS-232 input ports	1
RS-232 output ports	1
Storage temperature (T-T)	-20 - 60 °C
Sustainability compliance	Yes
Transceiver(s) included	Yes
Video in	1
Video resolution	3840 x 2160 Pixel
Weight	390g
Width	80mm
