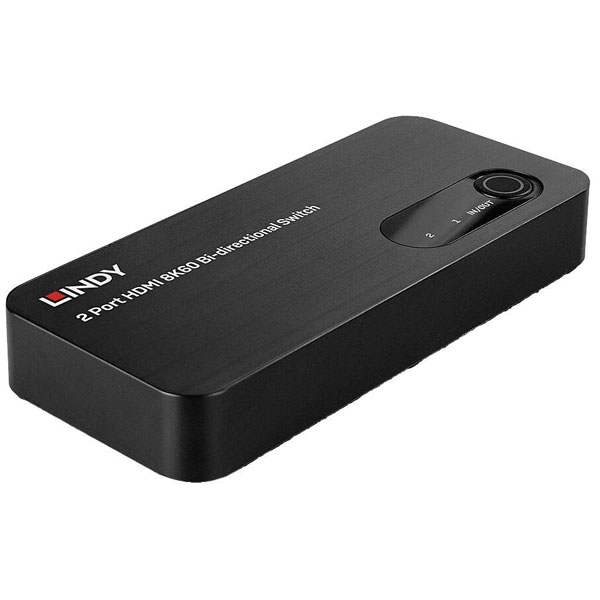

LINDY 38339 HDMI switch bidirectional operation 7680 x 4320p AV switch

LINDY 38339 is a HDMI switch designed for bidirectional operation and is capable of supporting ultra-high-definition resolutions up to 7680 x 4320p. This AV switch, alternatively referred to as product number 3013205, allows for seamless transition between multiple HDMI-enabled devices and display interfaces, facilitating both source and display switching. Its compatibility with high-resolution standards makes it a suitable choice for applications in advanced multimedia setups, digital signage, and professional presentation environments, where precise signal management and high-bandwidth performance are crucial. Engineered with reliability in mind, the LINDY 38339 ensures minimal signal loss and degradation, providing users with a dependable solution for intricate AV configurations.

Type	HDMI switch
Connector	2
Colour	Black
AC adapter output current	1 A
AC adapter output voltage	5 V
Bandwidth	48 Gbit/s
Colour depth	10 bit
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Consumer Electronics Control (CEC) support	No
Control LEDs	Yes
Depth	93mm
Design Height	14mm
Display Resolution	7680 x 4320 Pixel
Frame rate	120Hz
HDCP	Yes
HDCP version	2.3
HDMI version	2.1
HDR support	Yes
Height	17mm
High Dynamic Range (HDR) supported	Yes
InterFaces (Input)	HDMI™
InterFaces (output)	HDMI™
LED indicators	Yes
Material	ABS
Maximum refresh rate	120 Hz
Maximum resolution	7680 x 4320 pixels
No. of HDMI ports	2
No. of Inputs	2
No. of outputs	1
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 70 °C
Package weight	88 g
Quantity per pack	1 pc(s)
Rack mount option	No
Rack mounting	No
Resolution (max.)	7680 x 4320 p
Storage temperature (T-T)	-10 - 80 °C
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Supported monitors	2
Sustainability compliance	Yes
Video port type	HDMI
Video resolution	7680 x 4320 Pixel
Weight	47g
Width	127mm
