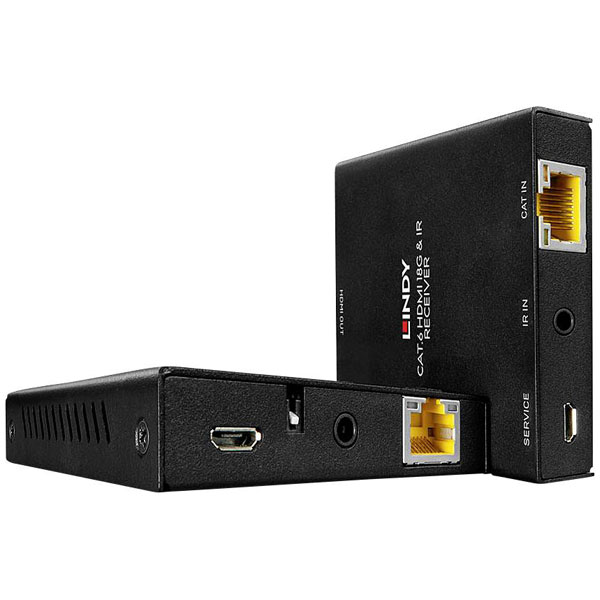

LINDY 38205 HDMI Extender 18G IR over RJ45 50m Network Cable, also identified as 2361107, is a extension solution designed for professional applications requiring high-speed data transmission. This device enables the transmission of HDMI signals up to 18Gbps, supporting video resolutions up to Ultra HD 4K at 60Hz with HDR, over a single RJ45 cable extending up to 50 metres. It incorporates integrated infrared remote control functionality for enhanced AV system control across extended distances. This extender is particularly suitable for use in environments such as broadcasting facilities, digital signage installations, and professional AV set-ups where reliable signal extension is critical. Suitable for engineers and system integrators, the LINDY 38205 ensures efficient long-distance transmission while maintaining high-quality video and audio output.
| Type |
via RJ45 network cable |
| Bandwidth |
18 Gbit/s |
| Cable types supported |
Cat5e, Cat6 |
| Cables included |
IR |
| Certification |
CE, FCC, REACH & California Proposition 65 |
| Chipset |
SIL9396, SIL9630 |
| Colour |
Black |
| Compliance certificates |
RoHS |
| Connectivity technology |
Wired |
| DC-in jack |
Yes |
| Dimensions |
(L x W x H) 97 x 70 x 15 mm |
| Extended display identification data (EDID) |
Yes |
| HDCP |
Yes |
| HDCP pass-through |
Yes |
| HDMI in |
1 |
| HDMI version |
2.0 |
| Height |
15mm |
| Input Current |
1 A |
| InterFaces (Input) |
HDMI™ |
| InterFaces (output) |
HDMI™ |
| IR pass-through |
Yes |
| Length |
97mm |
| Manual |
Yes |
| Material |
Metal |
| Maximum refresh rate |
60 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum transfer distance |
50 m |
| Number of HDMI outputs |
2 |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
24 V |
| Package depth |
70mm |
| Package height |
130mm |
| Package type |
Box |
| Package weight |
605 g |
| Package width |
220mm |
| Power Supply Type |
mains-powered |
| Product colour |
Black |
| Product Type |
HDMI extender |
| Range (max.) |
50m |
| Receiver dimensions (WxDxH) |
70 x 15 x 97 mm |
| Receiver weight |
151 g |
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| Resolution (max.) |
3840 x 2160 p |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Storage temperature (T-T) |
-20 - 60 °C |
| Transfer Type |
via RJ45 network cable |
| Transmitter dimensions (WxDxH) |
70 x 15 x 97 mm |
| Transmitter weight |
156 g |
| USB connector type |
Micro-USB |
| USB ports quantity |
2 |
| Weight |
156g |
| Width |
70mm |
