Leuze 50127061 HT46CI Photo Sensor, IP67/IP69K, BG Suppression, A²LS

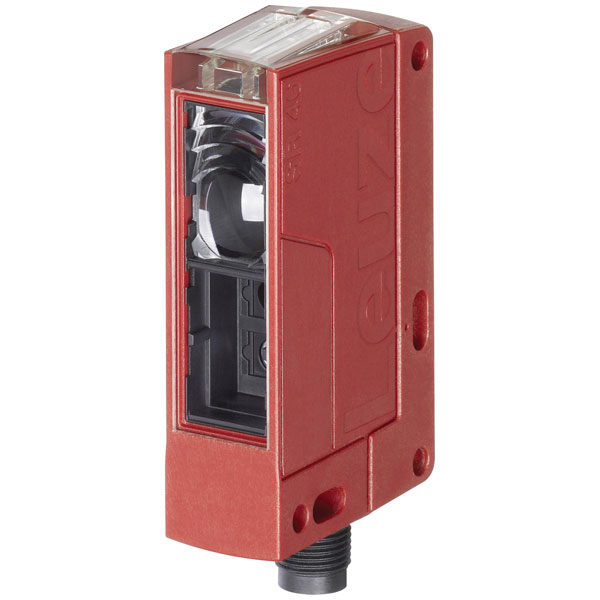

The Leuze Electronic HT46CI/4P-M12 50127061 is a retroreflective photo sensor with background suppression, offering both Light-ON and Dark-ON modes for versatile sensing applications. Manufactured by Leuze Electronic, this sensor provides reliable object detection and is typically used in automated manufacturing and material handling systems. Ideal for environments where precision and reliability are crucial, it utilises advanced light barrier technology for accurate performance.

Type	Retroreflective photo sensor
Connector	M12 (4-pin)
Depth	44mm
Dim	(W x H x D) 20.5 x 77.4 x 44 mm
Height	77.4mm
IP rating	IP67/IP69K
Max. operating voltage	30V DC
Max. range	3m
Max. temperature	+60°C
Min. operating voltage	10V DC
Min. temperature	-40°C
Misc Attribute	HT46CI/4P-M12
Operating voltage	10 - 30 V DC
Outputs	2x PNP Antivalent
Switching frequency	250Hz
Transmitter type	LED IR
Wavelength	860nm
Width	20.5mm
