Laserliner 082.086A ThermoCamera -20 to 350°C 220x165px 3.2" Display

Laserliner
Order Code:

04-8920

Brand: Laserliner MPN: 082.086A EAN-13: 4021563706730
Qty Unit Price (Ex VAT)
1+ £889.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 available to back orderBack-order availability date - 19/12/2025

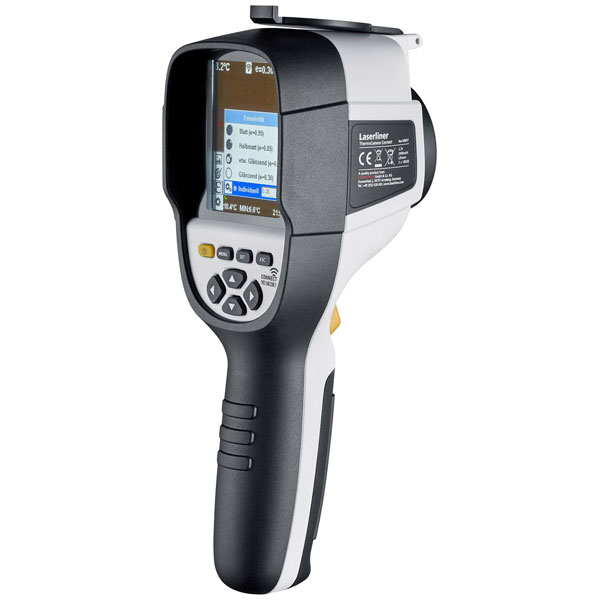

The Laserliner ThermoCamera Connect is an infrared camera that features a temperature range from -20 to 350 °C and a resolution of 220 x 165 pixels. Its built-in digital camera enhances thermal imaging capabilities by adding visual context to thermal measurements. Typical applications include building inspections, electrical maintenance, and HVAC system diagnostics.
Type IR camera
Thermal Sensitivity 0.07°C
Accuracy ± °C 2°C
Basic accuracy 2%
Bolometer array 220 x 165 Pixel
Colour schemes 5
Connection Wi-Fi (802.11b/g)
Dim (L x W x H) 90 x 105 x 223 mm
Display 8.13cm
Emission level (max.) 1.0
Emission level (min.) 0.01
Focus Fixed-focus
Frame Rate 9Hz
Height 223mm
Interfaces Wi-Fi
IP Rating IP54
Length 90mm
Min. focusing distance 0.5m
Misc Attribute ThermoCamera Connect
Optics 27°x35°
Temperature reading range -20 up to 350 °C
Temperature reading range (max.) 350°C
Temperature reading range (min.) -20°C
Temperature resolution 0.07°C
Width 105mm
