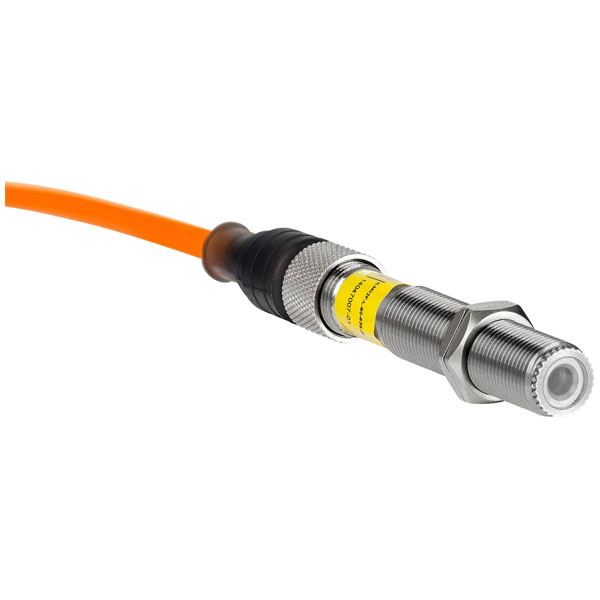

Laser Components 3027613 Laser module Line Red 7 mW ILM 12F-L -635-7-35-F

Laser Components 3027613, ILM 12F-L-635-7-35-F, is a precision-engineered laser module designed for advanced applications in laser technology. This device emits red light at a wavelength of 635 nm with a power output of 7 mW, utilising semiconductor laser technology to provide a reliable and coherent beam. Designed in compliance with safety standards such as IEC 60825-1 and VDE 0837, the module ensures secure operation in professional settings. With its solid state construction, the laser module delivers polarised light suitable for precise measurement and alignment tasks in fields such as robotics, photonics research, and various industrial applications. The integration of a compact design allows for easy incorporation into existing systems and instruments, where line projection is required.

Type	Laser module
Laser Class	2
Operating Distance	Not Specified
Wavelength	635nm
Optical Power	7mW
Angular Aperture	35°
Beam divergence	1mrad
Clearance	50mm
Colour	Red
Diameter	12mm
Dimensions	(Ø x L) 12 mm x 68 mm
Emission characteristics	Line
Focus properties	Selectable focus
Length	68mm
Max. operating voltage	30V DC
Maximum Temperature	50°C
Min. operating voltage	4.5V DC
Operating Current	50mA
Operating Voltage	4.5 - 30 V DC
