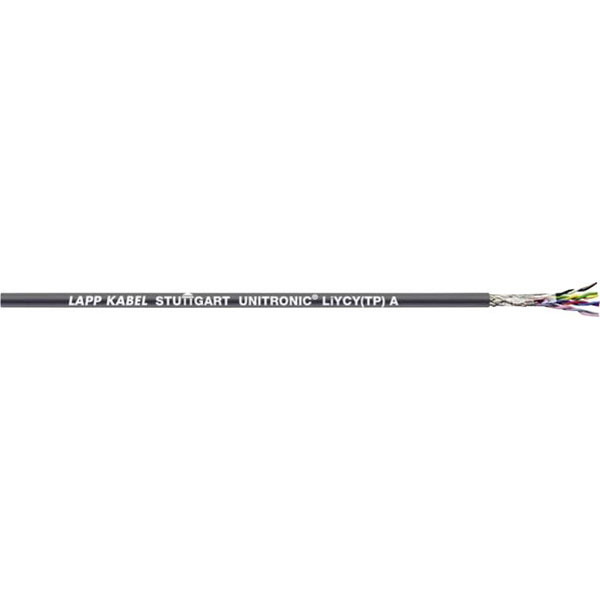

LAPP 66210/1 LiYCY data cable 10x2x0.14 mm² dark grey per metre

UNITRONIC® LIYCY UL/CSA cables are largely similar to the UNITRONIC® LIYCY cables but the sheath colour is dark grey (chrome). Because of the UL/CSA approval, the cable is used for wiring appliances, machinery and plant which are intended for export into the North American market.

Colour	Grey
Number of Cores	20
Conductor Cross Section	0.14mm²
AWG	26 AWG
Conductor Stranding	Finely stranded
Insulation Material	Polyvinyl Chloride (PVC)
Length	305m
Bend radius	For flexible use: 15 x external Ø · When fixed: 6 x external Ø
Bend radius (no. of ODs for fixed installation)	6
Bend radius (no. of ODs for flexible installation)	15
Cable Diameter	9.10mm
Certification marks	In accordance with VDE 0812.
Core layout	Braid, fine strands
Halogen-free	No
Max. temperature range (flexible installation)	+70°C
Maximum Wire Size AWG	26
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-5°C
Misc Attribute	UNITRONIC® LiYCY (TP) UL/CSA DIN
Nominal Voltage	(not for heavy current applications) 250V
Packaged	No
Shielded	Yes
Sold by Metre	Yes
Twisted pair cabling (part 1)	Yes (1)
Type	Data Cable
Wire ID code	DIN 47100
