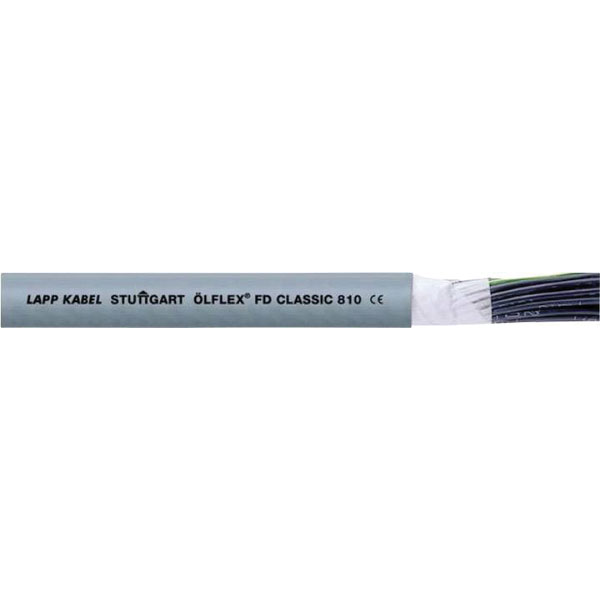

LAPP 602397 602397 Drag Chain Cable Range

LAPP Brand: LAPP
For continuously moving applications in the smallest bending radii up to 7.5 x outer diam. In power chains or mobile machine parts. In humid and wet areas. In the open air without UV protection and only in accordance with the temperature range. Application in measurement, control and instrumentation circuits, load circuits of electrical equipment in automation, assembly and handling technology, flow and assembly lines, production lines, machines of all kinds of tiny external diameter and Optimal. therefore, reduced space requirements in the power chain. Designed for a lifespan of at least 5 million cycles of alternating Biegel power chain.
Description Image Product Buy Pricing (Ex VAT) Number of Cores Conductor Cross Section Cable Diameter Misc Attribute 1 Misc Attribute 2 Shielded Standards Temperature Range Type Colour AWG Conductor Stranding Insulation Material Length Bend radius Bend radius (no. of ODs for fixed installation) Bend radius (no. of ODs for flexible installation) Core layout Halogen-free Max. temperature range (fixed installation)
LAPP 26152/1 FD CLASSIC 810 cable 5 G 1.50 mm² grey, for drag chains
LAPP 26152/1 FD CLASSIC 810 cable 5 G 1.50 mm² grey, for drag chains
Extended range
Order code: 67-5753
MPN: 26152/1

Available to back orderBack order, lead time 6 weeks
2+ £2.79
Price per unit Ex VAT 		5 1.50mm² 9.60mm No Black conductors with white numbering (VDE 0293) Active: 0 - +70 °C, fixed: -40 - +80°C ÖLFLEX® FD CLASSIC 810 Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26154/1 FD CLASSIC drag chain cable 12 G 1.50 mm² grey per metre
LAPP 26154/1 FD CLASSIC drag chain cable 12 G 1.50 mm² grey per metre
Standard range
Order code: 67-5758
MPN: 26154/1

25 in stock, despatched in 4 working days
1+ £6.51
Price per unit Ex VAT 		12 1.50mm² 13.50mm No Black conductors with white numbering (VDE 0293) Active: 0 - +70 °C, fixed: -40 - +80°C ÖLFLEX® FD CLASSIC 810 Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26220/1 FD CLASSIC 810 CY drag chain cable, 3G 0.75 mm², grey
LAPP 26220/1 FD CLASSIC 810 CY drag chain cable, 3G 0.75 mm², grey
Standard range
Order code: 67-5743
MPN: 26220/1

54 in stock, despatched in 4 working days
2+ £2.48
Price per unit Ex VAT 		3 0.75mm² 8.30mm Yes black conductors with white numbering (VDE 0293) Moves: 0 - +70 ° C fixed installation: -40 - +80 ° C.°C ÖLFLEX® FD CLASSIC 810 CY Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26120/1 FD CLASSIC cable 3 G 0.75 mm² grey, for tight spaces
LAPP 26120/1 FD CLASSIC cable 3 G 0.75 mm² grey, for tight spaces
Standard range
Order code: 67-5742
MPN: 26120/1

252 in stock, despatched in 4 working days
5+ £1.22
Price per unit Ex VAT 		3 0.75mm² 6.70mm No Black conductors with white numbering (VDE 0293) Active: 0 - +70 °C, fixed: -40 - +80°C ÖLFLEX® FD CLASSIC 810 Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26153/1 FD CLASSIC 810 cable 7G1.5mm² grey, for tight spaces
LAPP 26153/1 FD CLASSIC 810 cable 7G1.5mm² grey, for tight spaces
Standard range
Order code: 67-5756
MPN: 26153/1

234 in stock, despatched in 4 working days
2+ £3.83
Price per unit Ex VAT 		7 1.50mm² 11.50mm No Black conductors with white numbering (VDE 0293) Active: 0 - +70 °C, fixed: -40 - +80°C ÖLFLEX® FD CLASSIC 810 Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26223/1 FD Classic cable 7 G 0.75 mm² grey for flexible use
LAPP 26223/1 FD Classic cable 7 G 0.75 mm² grey for flexible use
Standard range
Order code: 67-5752
MPN: 26223/1

37 in stock, despatched in 4 working days
1+ £4.32
Price per unit Ex VAT 		7 0.75mm² 11.30mm ÖLFLEX® CLASSIC 810 CY 4G1.0 ÖLFLEX® FD CLASSIC 810 CY Yes black conductors with white numbering (VDE 0293) Moves: 0 - +70 ° C fixed installation: -40 - +80 ° C.°C Classic Cable Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26222/1 FD CLASSIC 810 CY drag chain cable 5G 0.75mm² grey
LAPP 26222/1 FD CLASSIC 810 CY drag chain cable 5G 0.75mm² grey
Standard range
Order code: 67-5747
MPN: 26222/1

225 in stock, despatched in 4 working days
2+ £3.41
Price per unit Ex VAT 		5 0.75mm² 9.50mm Yes black conductors with white numbering (VDE 0293) Moves: 0 - +70 ° C fixed installation: -40 - +80 ° C.°C ÖLFLEX® FD CLASSIC 810 CY Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26124/1 FD CLASSIC 810 drag chain cable 12G 0.75mm² grey
LAPP 26124/1 FD CLASSIC 810 drag chain cable 12G 0.75mm² grey
Standard range
Order code: 67-5738
MPN: 26124/1

115 in stock, despatched in 4 working days
1+ £4.05
Price per unit Ex VAT 		12 0.75mm² 11.20mm ÖLFLEX® -FD CLASSIC 810 ÖLFLEX® FD CLASSIC 810 No Black conductors with white numbering (VDE 0293) Active: 0 - +70 °C, fixed: -40 - +80°C ÖLFLEX® FD CLASSIC 810 Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
LAPP 26150/1 FD CLASSIC 810 cable 3 G 1.50 mm² grey, per metre
LAPP 26150/1 FD CLASSIC 810 cable 3 G 1.50 mm² grey, per metre
Standard range
Order code: 67-5749
MPN: 26150/1

84 in stock, despatched in 4 working days
3+ £1.83
Price per unit Ex VAT 		3 1.50mm² 7.90mm No Black conductors with white numbering (VDE 0293) Active: 0 - +70 °C, fixed: -40 - +80°C ÖLFLEX® FD CLASSIC 810 Grey Not Specified Finely stranded Polyvinyl Chloride (PVC) Sold per metre Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. 4 7.5 Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 No +80°C
