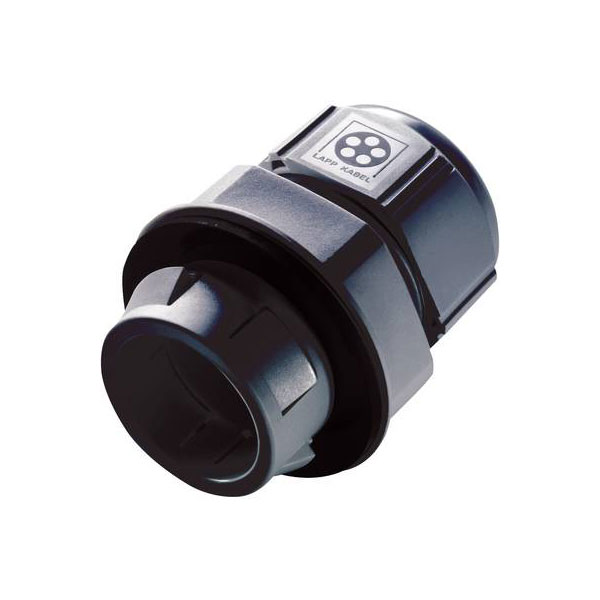

This LAPP SKINTOP® CLICK Cable Gland is one of the most innovative cable insertion systems on the market, for a fast and highly flexible assembly. Simply click in, turn to the left, turn to the right and the job is finished. The result is a fixed, centred, strain relieved fitting with the maximum protection class in a few seconds. This cable gland was specially developed for switch cabinet construction, measuring, control and electrical technology, automation technology, system, apparatus and control construction.
- Innovative time saving lock-nose system
- Up to 70 % time saving
- Protection class IP68
- Material: Body :Special polyamide
- Sealing: Special elastomer
- Protection type: IP68
- Standards/test marks: VDE / EN 50262
- Temperature range: -20°C to +100°C
- Type: SKINTOP® CLICK
- Supplied in black (RAL 7005)
- Supplied in M25, 9-17mm²
- Manufacturer's part: LAPP 53112884
| Thread Size |
M25 |
| Colour |
Black |
| Material |
Polyamide |
| IP Rating |
IP68 |
| Type |
Cable gland |
| Bend Radius Protection/Trumpet Flare |
No |
| EMC-version |
No |
| Explosion-tested version |
No |
| Flat cable sealing |
No |
| For armoured cable |
No |
| Glass fibre reinforced |
No |
| Halogen free |
No |
| Hexagon angular dimension |
35.2mm |
| Locknut Included |
No |
| Material Grade |
Polyamide (PA) |
| Maximum Temperature |
+100°C |
| Min. temperature |
-20°C |
| Model Type |
Straight |
| Multi cable sealing |
No |
| Nominal Thread Size Inch/Gas Pipe Thread |
Other |
| Nominal Thread Size Metric/PG |
25 |
| RAL Number |
9005 |
| Screened |
No |
| Separable (split) screw gland |
No |
| Shock resistant |
Yes |
| Snapping in opening |
Yes |
| Suitable For Cable Outer Diameter |
9mm - 17mm |
| Surface protection |
Untreated |
| Thread Length |
8mm |
| Type of sealing |
Sealing ring |
| With strain relief |
Yes |
| Working temperature |
-40°C - 100°C |
| Wrench width |
32mm |
