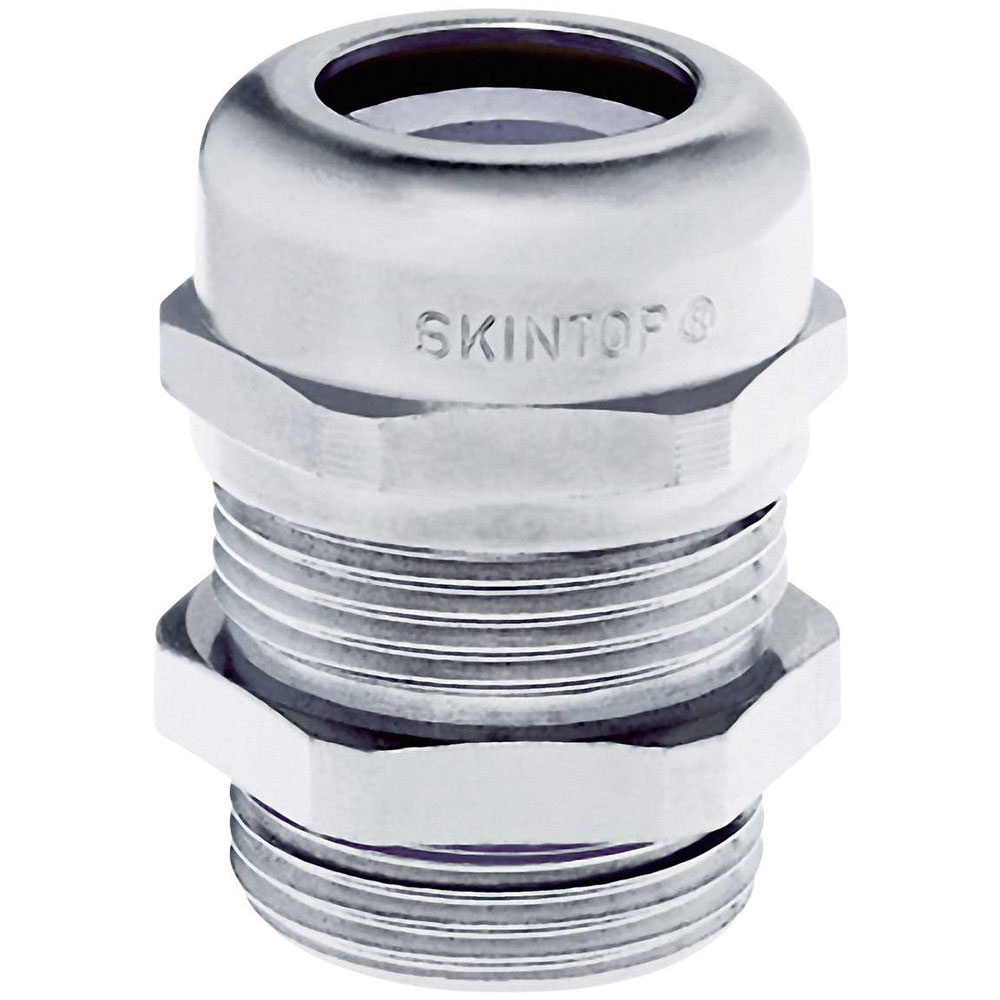

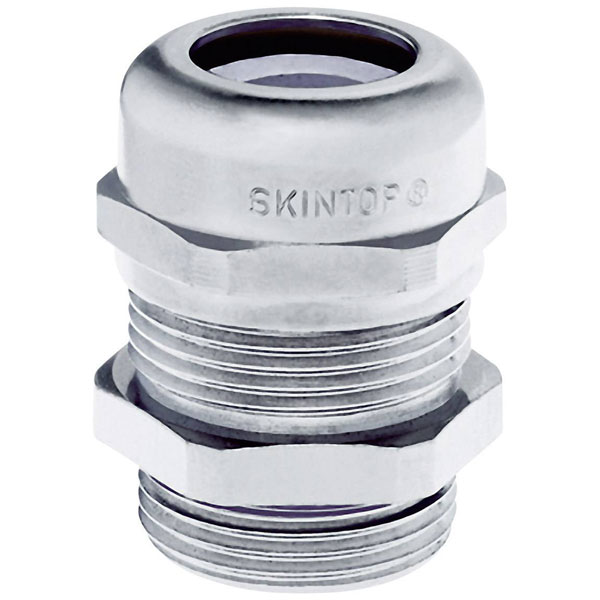

LAPP 53112511 gland Brass M75 1 pc durable brass construction

Introducing the LAPP 53112511 Gland, designed to provide secure and reliable connections for your cable installations. Made from high-quality brass, this M75 gland features a robust construction that ensures durability and long-lasting performance in various applications.

Thread Size	M75
Colour	Brass
Material	Brass
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	53mm
EMC-version	No
Explosion-tested version	No
External thread	M75
Flat cable sealing	No
For armoured cable	No
Glass fibre reinforced	No
Halogen free	No
Hexagon angular dimension	105mm
Locknut Included	No
Material Grade	Brass
Maximum Temperature	+100°C
Min. temperature	-30°C
Model Type	Straight
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	75
Pitch thread	1.5mm
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Spanner size	95mm
Suitable For Cable Outer Diameter	53mm - 63mm
Surface protection	Nickel-plated
Terminal Ø (max.)	63mm
Thread Length	15mm
Thread Type	Metric
Type of sealing	Sealing ring
With strain relief	Yes
Working temperature	-40°C - 100°C
Wrench width	95mm
