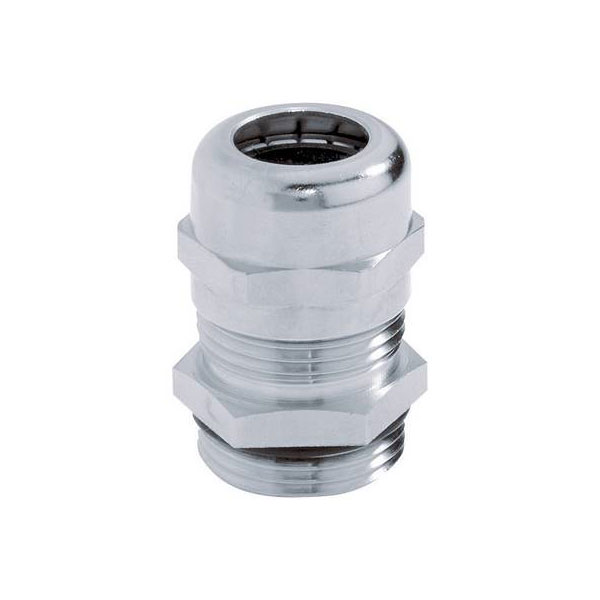

This SKINTOP® MSR-M40 is a nickel-plated brass cable gland with metric connecting thread and combines high quality regarding consistency and reliability. It has been especially designed for use in manufacturing of machines and equipment, in measuring, controlling as well as in the pharmaceutical industry and for medical equipment.
- The versatile brass screwed gland with metric connection thread.
- Clamping range diameter: 19 - 28mm
- Colour: Brass
- Material: Body: nickel plated brass, insert: polyamide, sealing ring: CR/NBR, RO-ring: NBR
- Protection type: IP68 (up to 5 bar)
- Size: M40
- Temperature range: -30ºC to +100ºC
- Type: MS-M40X1.5
Please Note: Locknut not included.
| Thread Size |
M40 |
| Colour |
Brass |
| Material |
Brass |
| IP Rating |
IP68 |
| Type |
Cable gland |
| Bend Radius Protection/Trumpet Flare |
No |
| Clamping range diameter |
19 - 28mm |
| EMC-version |
No |
| Explosion-tested version |
No |
| Flat cable sealing |
No |
| For armoured cable |
No |
| Glass fibre reinforced |
No |
| Halogen free |
No |
| Hexagon angular dimension |
49.5mm |
| Locknut Included |
No |
| Material Grade |
Brass |
| Maximum Temperature |
+100°C |
| Min. temperature |
-30°C |
| Model Type |
Straight |
| Multi cable sealing |
No |
| Nominal Thread Size Inch/Gas Pipe Thread |
Other |
| Nominal Thread Size Metric/PG |
40 |
| Pitch thread |
1.5mm |
| Screened |
No |
| Separable (split) screw gland |
No |
| Shock resistant |
Yes |
| Snapping in opening |
No |
| Suitable For Cable Outer Diameter |
19mm - 28mm |
| Surface protection |
Nickel-plated |
| Thread Length |
9mm |
| Thread Type |
Metric |
| Type of sealing |
Sealing ring |
| With strain relief |
Yes |
| Working temperature |
-40°C - 100°C |
| Wrench width |
45mm |
