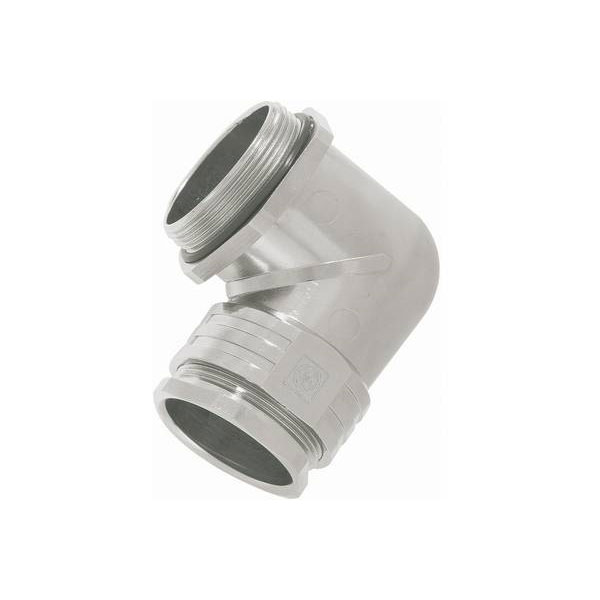

LAPP 52107840 SKINDICHT® RWV-M32x1.5 Brass Angled Screwed Gland Silver

A LAPP SKINDICHT® RWV-M Zinc Cable Gland with 90° elbow. The adjusting nut allows the screwed gland to be tightened in any desired position. The clamping range is variable because of the recess seal. The RWV-M screwed gland is sea water tight, and corrosion resistan

• Metric 90° brass angled screwed gland with compact dimensions
• Clamping range diameter: 16 - 25mm
• Material: Body: Nickel-plated brass
• Incision Seal: CR / NBR.
• Protection type: IP55
• Temperature range: -20°C to +100°C
• Type: RWV-M
• Supplied in silver colour
• Supplied size: M32x 1.5mm
• Manufacturer's part: LAPP 52107840

Thread Size	M32
Colour	Nickel
Material	Brass (Ni-plated)
IP Rating	IP55
Type	Elbow
Maximum Temperature	+100°C
Min. temperature	-20°C
