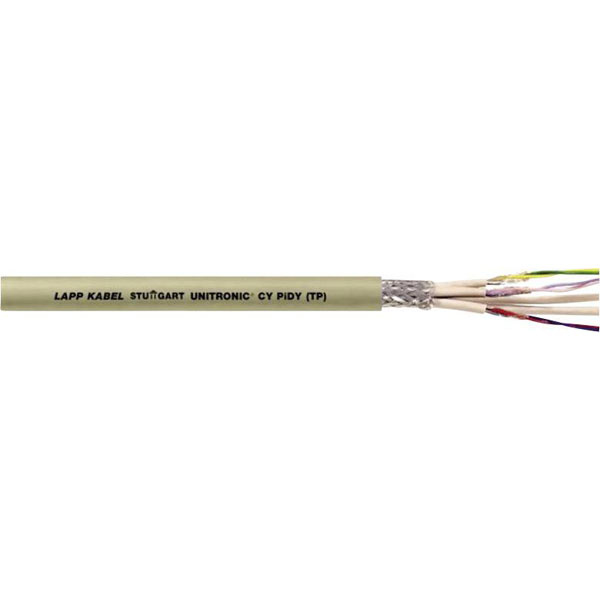

LAPP 34251/1 CY PiDY data cable 3x2x0.25 mm² grey double shielded

LAPP
Order Code:

67-5797

Brand: LAPP MPN: 34251/1 EAN-13: 2050000203527
Qty Unit Price (Ex VAT)
2+ £3.89
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
47 in stock, despatched in 4 working days

Twisted-pair wires can often be used to transmit different signals, with respect to frequencies and voltage levels. In order to achieve a high level of transmission security, the UNITRONIC® CY PIDY (TP) is utilised, to provide double shielding from disturbance, while simultaneously reducing or eliminating interference.
Colour Grey
Length 100m
Type Low Interference Cable
Bend radius Wide range of applications: 6 x external dia.
Bend radius (no. of ODs for flexible installation) 6
Cable Diameter 9.80mm
Certification marks In Anlehnung an VDE 0812
Conductor Cross-section 0.25mm²
Core layout Braid, fine strands
Halogen-free No
Insulation Material PVC
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute UNITRONIC® CY PIDY (TP)
Nominal Voltage 250V
Number of leads 6
Packaged No
Shielded Yes
Sold by Metre Yes
Twisted pair cabling (part 1) Yes (1)
Wire ID code DIN 47100
