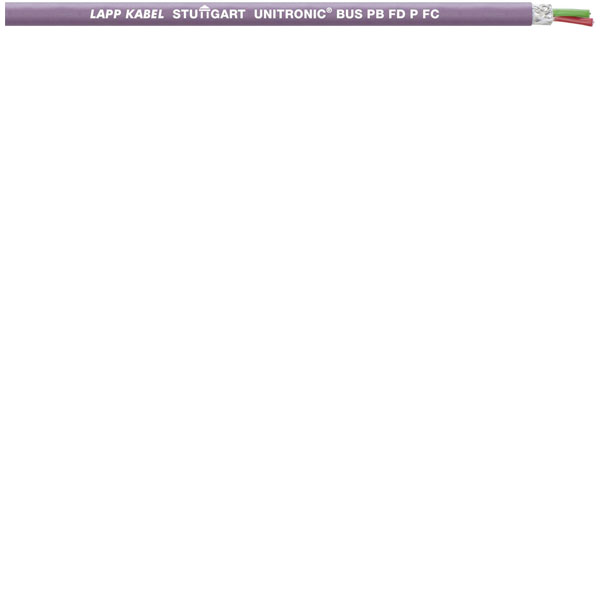

LAPP 2170322/1 bus cable 1x2x0.64mm² violet FC, PROFIBUS compatible

MPN: 2170322/1
Brand: LAPP
EAN-13: 2050000204128
Order Code: 67-5843
Country of Origin: Austria

RoHS Compliant
Free UK shipping available

View Full Product Range (14)

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£3.74

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 205 in stock

Product Details
Product Range
Data Sheets

Fastconnect (FC) cable setup. Cables can be used both for PROFIBUS-DP, PROFIBUS-FMS and FIP. For highly flexible application (drag-chain, frequently moving machine parts). .

Colour	Violet
Number of Cores	2
Conductor Cross Section	0.64mm²
AWG	Not Specified
Conductor Stranding	Finely stranded
Insulation Material	PUR
Length	Sold per metre
Bend radius (no. of ODs for flexible installation)	15
Cable Diameter	8mm
Halogen-free	No
Max. temperature range (fixed installation)	+80°C
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-30°C
Misc Attribute 1	UNITRONIC® Bus FD (PUR) L2/FIP FC
Misc Attribute 2	Bus FD(PURE) L2/FIP FC
Packaged	No
Shielded	Yes
Sold by Metre	Yes
Twisted pair cabling (part 1)	Yes (1)
Type	Cable
Wave impedance	150Ω
