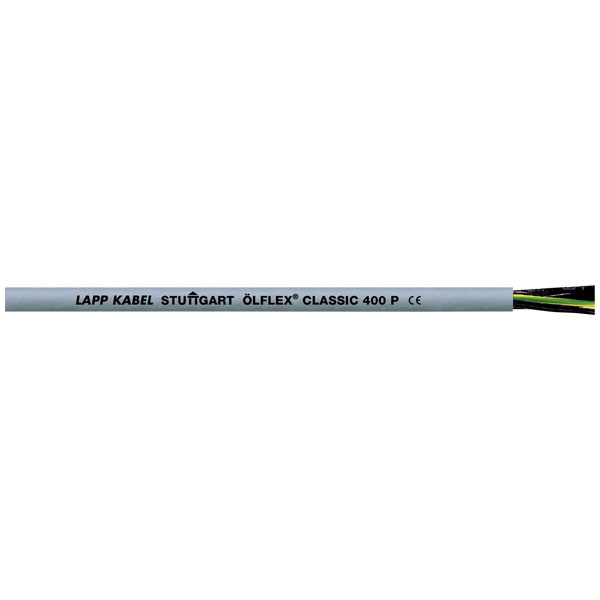

LAPP 1312305/1 Classic 400 P Control lead 5G1.50 mm² grey, UV resistant

LAPP
Order Code:

67-5730

Brand: LAPP MPN: 1312305/1 EAN-13: 2050000202230
Qty Unit Price (Ex VAT)
2+ £2.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
327 in stock, despatched in 4 working days

Because of its excellent mechanical, chemical and UV resistance, this cable is used everywhere that cables are subject to a great deal of wear due to harsh operational conditions.
Insulation material Polyurethane
Bend radius For flexible use: 12.5 x external dia.; when laid fixed: 4 x external dia.
Bend radius (no. of ODs for fixed installation) 4
Bend radius (no. of ODs for flexible installation) 12
Cable type ÖLFLEX® CLASSIC 400 P
Certification marks In accordance with: VDE Reg. No. 7030, sheath according to VDE 0250/0282.
Core layout Finely stranded according to VDE 0295, Class 5 / IEC 228 Class 5
Cross section (each core) 1.50mm²
Factory colour Grey
Halogen-free No
Max. length sold by the metre 300m
Max. temperature range (fixed installation) +85°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute ÖLFLEX® CLASSIC 400 P
No. of leads 5 G
Nominal voltage 500V
Nominal voltage (details) 300/500V
Nominal voltage U0 300V
Number-coded Yes
Outside Ø 8.10mm
Packaged No
Sold per metre Yes
Suited for cable carriers No
Temperature range Moving: -5 - +70 °C, when fixed : -40 - +80°C
Type Control Lead
Wire ID code Black wires with white number printing (VDE 0293)
