Control and connection line especially under industrial ambient conditions. Mainly in dry, moist or wet rooms at normal mechanical load. Used also in the open under consideration of the temperature range. Direct earth laying possible. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations.
Machine engineering, plant engineering, heating and air-conditioning technology, power plant technology, painting systems, UV- and weather-resistant.
High insulation safety through 4 kV test voltage. Free from substances interfering with paint wetting (LBS-free / silicon-free), thus also suitable for painting plants
| Colour |
Black |
| Type |

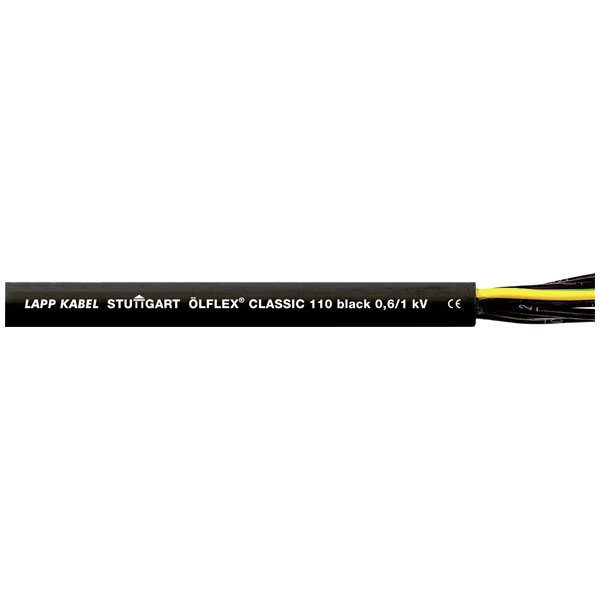

ÖLFLEX® CLASSIC 110 |
| Bend radius |
For flexible use: 15 x external dia.; when laid fixed: 4 x external dia. |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable Diameter |
12.60mm |
| Conductor Cross-section |
1.50mm² |
| Core layout |
Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5 |
| Halogen-free |
No |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-30°C |
| Min. temperature range (flexible installation) |
-5°C |
| Nominal Voltage |
600V |
| Number of leads |
7 G |
| Number-coded |
Yes |
| Packaged |
No |
| Sold by Metre |
Yes |
| Standards |
Black wires with white numbering (VDE 0293) |
| Suited For Cable Carriers |
No |
| Temperature Range |
Moving: -5 - +70 °C, when fixed : -30 - +80°C |
| Test voltage |
4000V |
