Connection and control cable especially under industrial ambient conditions. Mainly in dry, moist or wet rooms at normal mechanical load. In the open only under consideration of the temperature range and UV protection. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations.
Plant engineering, machine engineering, heating and air-conditioning technology, power plant technology.
Optimised, small outer-Ø and this reduced space requirement. High insulation safety through 4000 kV test voltage. Largely resistant to acids, alkali and certain oils at room temperature.
.
| Insulation material |
PVC |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable features |
High flexural strength |
| Cable type |

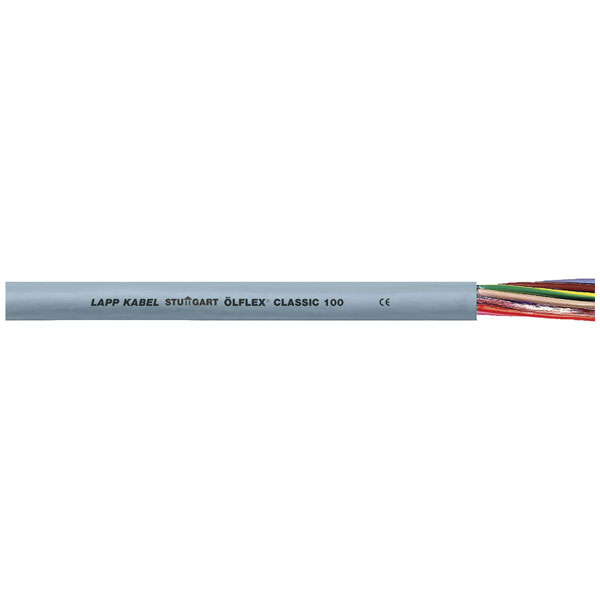

ÖLFLEX® CLASSIC 100 |
| Certification marks |
In accordance with: IEC 60227-5; HD 21.5 S3; VDE 0281 Part 5 HD 21.13 S1; VDE 0281 Part 13 |
| Core layout |
Finely stranded |
| Cross section |
2 x 0.50 mm² |
| Cross section (each core) |
0.50mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Insulation |
Specific contact resistance: > 20 GΩ x cm |
| Material (details) |
PVC |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute 1 |
ÖLFLEX CLASSIC 100 2X0,5 |
| Misc Attribute 2 |
Round |
| No. of leads |
2 |
| Nominal voltage |
500V |
| Nominal voltage U0 |
300V |
| Outside Ø |
4.80mm |
| Packaged |
Yes |
| Sold per metre |
No |
| Test voltage |
4000V |
| Type |
Control Cable |
