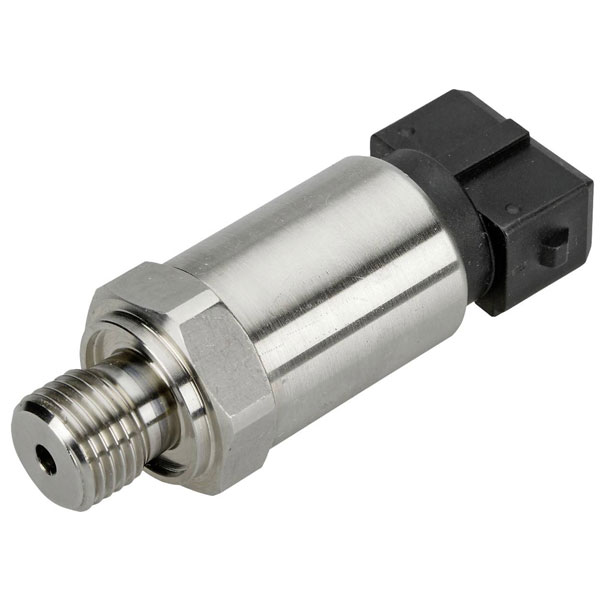

KYOCERA/AVX 9670500135 Pressure Sensor 0-20 bar G 1/4" 22x86 mm

The KYOCERA/AVX 9670500135 pressure sensor can measure pressures from 0 to 20 bar with dimensions of 22 mm x 86 mm. Featuring a G 1/4" fitting, it is suitable for applications in industrial and automotive systems. This sensor is typically used to monitor and regulate air and fluid pressures efficiently.

Type	Pressure sensor
(Ø)	22mm
Accuracy	0.5%
Burst load	60bar
Connector	G 1/4"
Dimensions	(Ø x L) 22 mm x 86 mm
IP Rating	IP67
Length	86mm
Max. operating voltage	30V
Maximum Temperature	+125°C
Min. operating voltage	9V
Min. temperature	-40°C
Operating Voltage	9 - 30 V
Output signal (max.)	4.5V
Output signal (min.)	0.5V
Outputs	Voltage (analogue)
Pressure reading range	0 bar up to 20 bar
Pressure reading range (max.)	20bar
Pressure reading range (min.)	0bar
Resolution	2%
Response Time	1ms
Weight	60g
