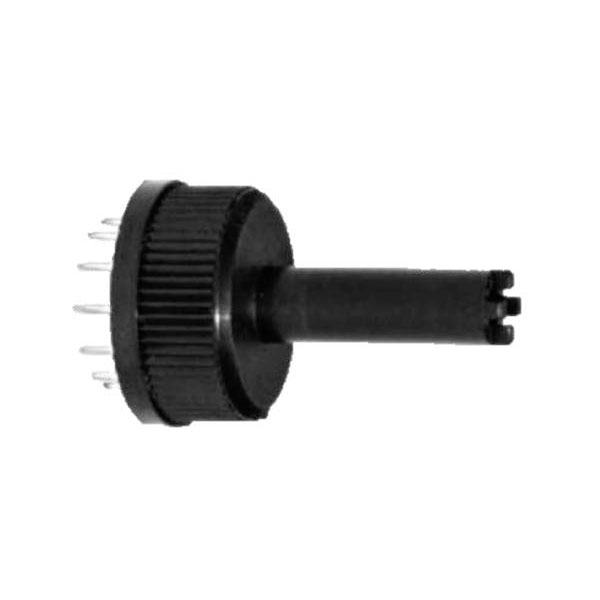

KYOCERA/AVX 9341901431 Rotary Switch 150V 130mA 4 Positions

The KYOCERA/AVX 9341901431 rotary switch is designed for both DC and AC applications with a voltage rating of 150 V and a current rating of 130 mA. It offers four switch positions with a rotation angle of 15 degrees, providing precise control in electrical circuits. This switch is typically used in electronic equipment and control panels for reliable and efficient switching operations.

Type	Rotary switch
Number of Positions	4
Index Stops	4
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Rotary Shaft
(Ø)	19.4mm
Angle of Throw	15°
Axle Ø	6mm
Casing/button Colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 30 mm
Functions	latch
Length	30mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	4
Switching Voltage	150V DC/AC
