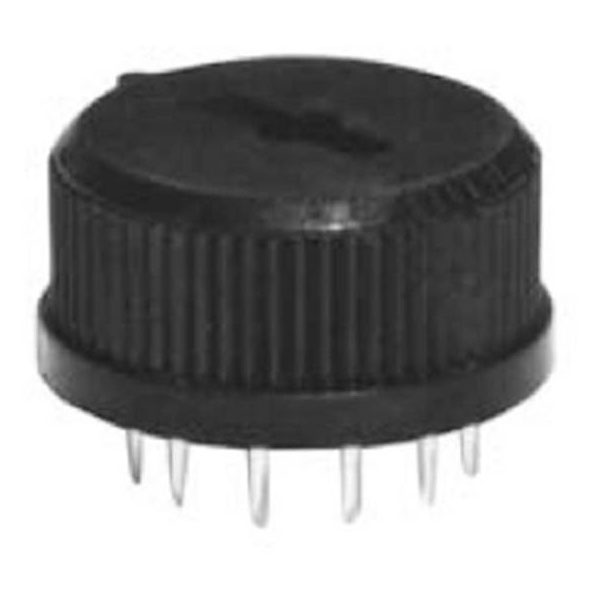

KYOCERA/AVX 9341700026 Rotary Switch 150V 130mA 6 Positions 15°

The KYOCERA/AVX 9341700026 rotary switch is designed for applications requiring precise control, with six positions and a 15-degree increment. It supports a voltage rating of 150 V DC/AC and a current of 130 mA. Ideal for electronics, this switch is commonly used in audio equipment and control panels.

Type	Rotary switch
Number of Positions	6
Index Stops	6
Number of Decks	1
Current Rating (Amps)	130mA
Actuator Type	Knob
(Ø)	19.4mm
Angle of Throw	15°
Casing/button Colour	Black
Connection	Pins
Contact Material	Copper silver plated
Dim	(Ø x L) 19.4 mm x 10 mm
Functions	latch
Length	10mm
Lighting Type	None
Material	Plastic
Operation type	Rotary switch
Switch postions	6
Switching Voltage	150V DC/AC
