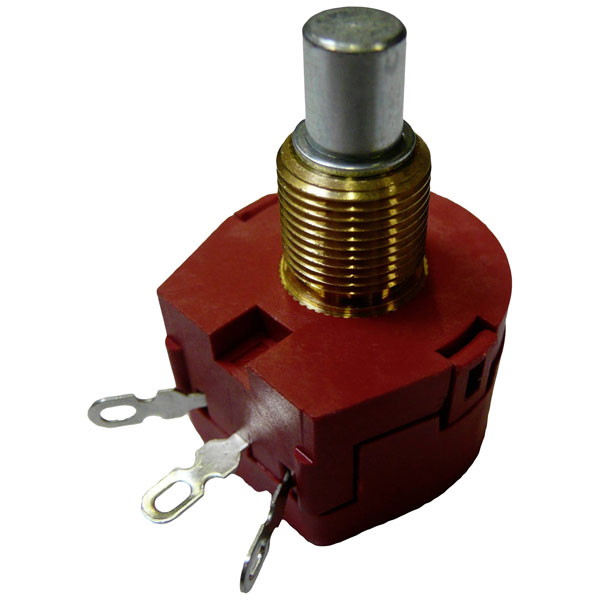

KYOCERA/AVX 3109608387 Wire-wound pot Mono Rotary 1 W 22 kΩ Potentiometer

KYOCERA/AVX 3109608387, a wire-wound potentiometer, is a mono rotary type engineered for precision in variable resistance tasks. This device is rated for 1 watt, demonstrating its capacity for handling moderate power levels in electrical circuits. With a resistance value of 22 kO, it provides a reliable solution for applications requiring precise adjustment of resistance, such as in audio equipment or industrial control systems. This slide potentiometer is designed for seamless integration within circuits, offering durability and accuracy, typical of high-quality wire-wound components. Its construction ensures consistent performance in scenarios demanding fine-tuning and spatial efficiency.

Type	3109608387
Resistance	22kΩ
Power Rating	1W
Actuating Force	3Ncm
Axle Diameter	6mm
Case Dimensions	23mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	23mm
Dimensions	(Ø x L) 23 mm x 17.5 mm
Electrical Angle	265°
Impact Tolerance	100Ncm
Length	17.5mm
Lever Length	27mm
Maximum Temperature	+90°C
Mechanical Angle	285°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
