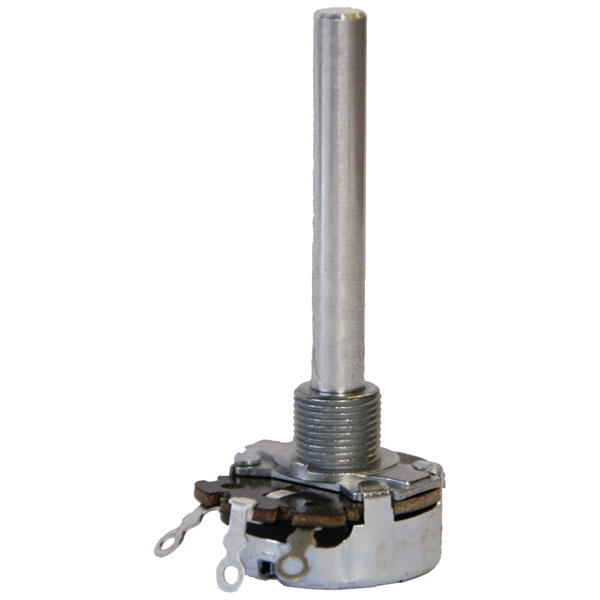

KYOCERA/AVX 3104607991 Wire-wound pot Mono 4 W 10 kΩ Rotary Potentiometer

KYOCERA/AVX 3104607991 is a wire-wound rotary potentiometer designed for precision and durability in demanding applications. This model offers a resistance of 10 kO and a power rating of 4 W, making it suitable for robust industrial applications requiring reliable control of electrical resistance. Known for its mono-channel configuration, this rotary potentiometer excels in environments that require fine adjustments and high stability. Typical engineering applications include its use in audio equipment for volume control, in industrial machinery for position sensing, and in electronic circuits requiring precise resistance adjustments. As a slide potentiometer, it ensures smooth operation and consistent performance across a wide range of settings.

Type	3104607991
Resistance	10kΩ
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Lever Length	20mm
Max. temperature	+90°C
Maximum Temperature	+90°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Temperature Coefficient	20ppm/°C
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
