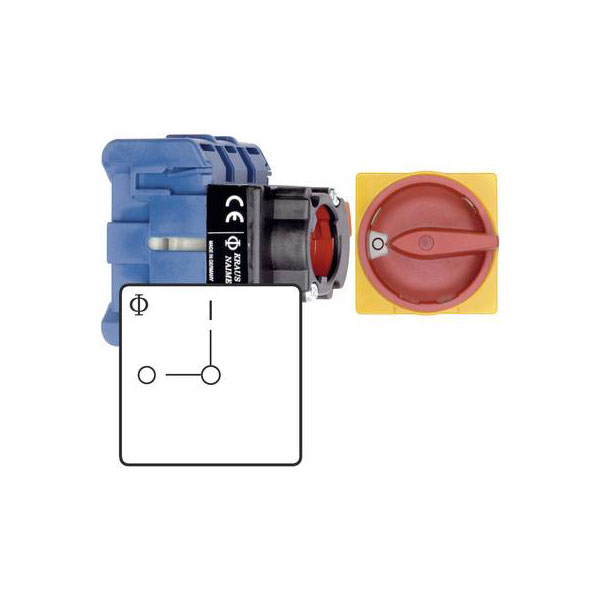

Kraus & Naimer KG32B.T203/01.FT2 Isolator Switch 32A Red/Yellow

The Kraus & Naimer KG32B.T203/01.FT2 is an isolator switch with a 32 A capacity and operates at a 90° position. This switch features a distinctive red and yellow design, making it easily identifiable for safety purposes. It is typically used in electrical applications requiring reliable isolation and control of circuits.

Type	Isolator switch
Connection	Plug & Clip
Functions	latch
IP Rating	IP66
Length	64mm
Misc Attribute 1	Quick mounting 22mm
Mounting Type	Center lock
Operation type	EPO rotary switch
Power Rating	11kW
Print motif	0/I
Recess Diameter	22mm
Size/ Dimensions	(L x W) 64 mm x 64 mm
Switch position	3 x Off/On
Switching angle	1 x 90 °
Switching current (max.)	32A
Width	64mm
