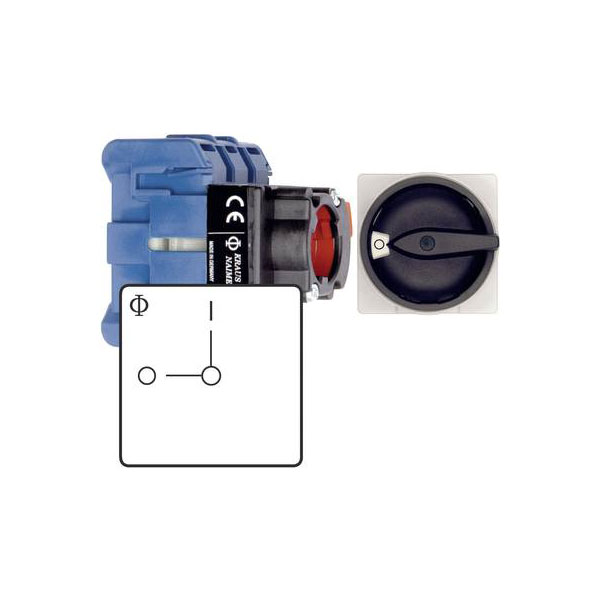

Kraus & Naimer KG10B.T102/01.FT2 Isolator Switch 20A 230V 1x90° Black

The Kraus & Naimer KG10B.T102/01.FT2 isolator switch supports a 20 A current at 230 V and features a single 90° operation. This black switch is designed for reliable circuit isolation in electrical installations. Its typical applications include controlling and securing power to machinery or equipment in industrial and commercial settings.

Casing/button Colour	Black
Connection	Plug & Clip
Functions	latch
IP Rating	IP66
Length	64mm
Misc Attribute 1	Quick mounting 22mm
Mounting Type	Center lock
Operation type	Rotary switch
Power Rating	1.5kW
Print motif	0/I
Recess Diameter	22mm
Size/ Dimensions	(L x W) 64 mm x 64 mm
Switch position	2 x Off/On
Switch Rating	230V
Switching angle	1 x 90 °
Switching current (max.)	20A
Type	Isolator switch
Width	64mm
