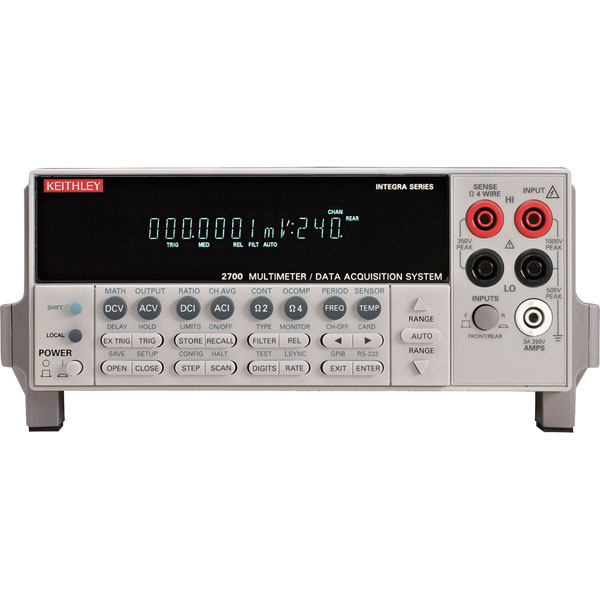

Keithley 2700/7700/E Digital Multimeter DMM

The Keithley 2700/E is a 6½-digit Multimeter/Switch System from the Integra Series. This DMM is supplied with the Keithley 7700 Differential Multiplexer making it a high performance, compact, affordable and easy-to-use package.

The 2700/E consists of a mainframe with two slots for plug-in modules. Each slot can support multiplexer, matrix, or control modules, and all the modules in a system operate simultaneously. Input modules can be mixed or matched to provide a broad range of measurement, acquisition, and control capabilities.

Setting up the 2700/E is simple and straightforward. When a plug-in module is inserted into a slot, it is ready to be used immediately. Settings can be configured from the front panel of the system or via the computer controller (over GPIB, RS-232, or Ethernet). Also, each channel can be configured independently.

• Combines functions of DMM, switch system, and datalogger
• True 6½-digit (22-bit) resolution
• Choice of 12 switch/control plug-in modules
• Up to 200 differential input channels (with 300V isolation) for measurement and control
• Convenient front panel inputs
• Free LabVIEW™, LabWindows/CVI, Visual Basic, C/C++, and TestPoint™ drivers (IVI style)
• GPIB and RS-232 communications capabilities
• Free ExceLINX™-1A datalogging software
• Manufacturer's part: Keithley 2700/7700/E
